OpenVINO™ を使用した YOLOv8 リアルタイム物体検出の変換と最適化#

models_dir = Path("./models")
models_dir.mkdir(exist_ok=True)

from PIL import Image
from ultralytics import YOLO

DET_MODEL_NAME = "yolov8n"

det_model = YOLO(models_dir / f"{DET_MODEL_NAME}.pt")
label_map = det_model.model.names

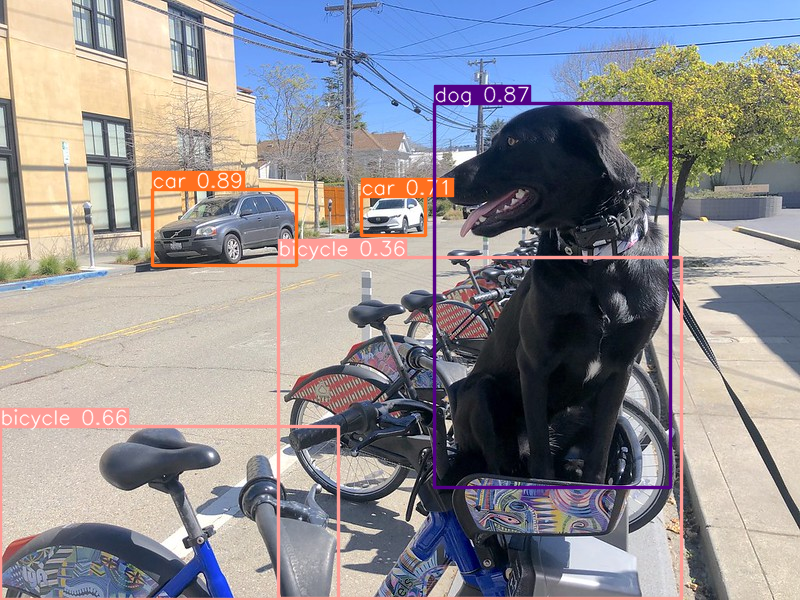

res = det_model(IMAGE_PATH)
Image.fromarray(res[0].plot()[:, :, ::-1])

# 物体検出モデル
det_model_path = models_dir / f"{DET_MODEL_NAME}_openvino_model/{DET_MODEL_NAME}.xml"
if not det_model_path.exists():
    det_model.export(format="openvino", dynamic=True, half=True)

import ipywidgets as widgets
import openvino as ov

core = ov.Core()

device = widgets.Dropdown(
    options=core.available_devices + ["AUTO"],
    value="AUTO",
    description="Device:",
    disabled=False,
)

device

import torch

core = ov.Core()

det_ov_model = core.read_model(det_model_path)

ov_config = {}
if device.value != "CPU":
    det_ov_model.reshape({0: [1, 3, 640, 640]})
if "GPU" in device.value or ("AUTO" in device.value and "GPU" in core.available_devices):
    ov_config = {"GPU_DISABLE_WINOGRAD_CONVOLUTION": "YES"}
det_compiled_model = core.compile_model(det_ov_model, device.value, ov_config)

def infer(*args):
    result = det_compiled_model(args)
    return torch.from_numpy(result[0])

det_model.predictor.inference = infer
det_model.predictor.model.pt = False

res = det_model(IMAGE_PATH)
Image.fromarray(res[0].plot()[:, :, ::-1])

from zipfile import ZipFile

from ultralytics.data.utils import DATASETS_DIR

DATA_URL = "http://images.cocodataset.org/zips/val2017.zip"
LABELS_URL = "https://github.com/ultralytics/yolov5/releases/download/v1.0/coco2017labels-segments.zip"
CFG_URL =
"https://raw.githubusercontent.com/ultralytics/ultralytics/v8.1.0/ultralytics/cfg/datasets/coco.yaml"

OUT_DIR = DATASETS_DIR

DATA_PATH = OUT_DIR / "val2017.zip"
LABELS_PATH = OUT_DIR / "coco2017labels-segments.zip"
CFG_PATH = OUT_DIR / "coco.yaml"

download_file(DATA_URL, DATA_PATH.name, DATA_PATH.parent)
download_file(LABELS_URL, LABELS_PATH.name, LABELS_PATH.parent)
download_file(CFG_URL, CFG_PATH.name, CFG_PATH.parent)

if not (OUT_DIR / "coco/labels").exists():
    with ZipFile(LABELS_PATH, "r") as zip_ref:
        zip_ref.extractall(OUT_DIR)
    with ZipFile(DATA_PATH, "r") as zip_ref:
        zip_ref.extractall(OUT_DIR / "coco/images")

import numpy as np

from tqdm.notebook import tqdm
from ultralytics.utils.metrics import ConfusionMatrix

def test(
    model: ov.Model,
    core: ov.Core,
    data_loader: torch.utils.data.DataLoader,
    validator,
    num_samples: int = None,
):
    """
    OpenVINO YOLOv8 model accuracy validation function.Runs model validation on dataset and returns metrics
    Parameters:
        model (Model): OpenVINO model
        data_loader (torch.utils.data.DataLoader): dataset loader
        validator: instance of validator class
        num_samples (int, *optional*, None): validate model only on specified number samples, if provided
    Returns:
        stats: (Dict[str, float]) - dictionary with aggregated accuracy metrics statistics, key is metric name, value is metric value
    """
    validator.seen = 0
    validator.jdict = []
    validator.stats = dict(tp=[], conf=[], pred_cls=[], target_cls=[])
    validator.batch_i = 1
    validator.confusion_matrix = ConfusionMatrix(nc=validator.nc)
    model.reshape({0: [1, 3, -1, -1]})
    compiled_model = core.compile_model(model)
    for batch_i, batch in enumerate(tqdm(data_loader, total=num_samples)):
        if num_samples is not None and batch_i == num_samples:
            break
        batch = validator.preprocess(batch)
        results = compiled_model(batch["img"])
        preds = torch.from_numpy(results[compiled_model.output(0)])
        preds = validator.postprocess(preds)
        validator.update_metrics(preds, batch)
    stats = validator.get_stats()
    return stats

def print_stats(stats: np.ndarray, total_images: int, total_objects: int):
    """
    Helper function for printing accuracy statistic
    Parameters:
        stats: (Dict[str, float]) - dictionary with aggregated accuracy metrics statistics, key is metric name, value is metric value
        total_images (int) - number of evaluated images
        total objects (int)
    Returns:         None
    """
    print("Boxes:")
    mp, mr, map50, mean_ap = (
        stats["metrics/precision(B)"],
        stats["metrics/recall(B)"],
        stats["metrics/mAP50(B)"],
        stats["metrics/mAP50-95(B)"],
    )
    # 結果をプリント
    print(" Best mean average:")
    s = ("%20s" + "%12s" * 6) % (
        "Class",
        "Images",
        "Labels",
        "Precision",
        "Recall",
        "mAP@.5",
        "mAP@.5:.95",
    )
    print(s)
    pf = "%20s" + "%12i" * 2 + "%12.3g" * 4 # print format
    print(pf % ("all", total_images, total_objects, mp, mr, map50, mean_ap))
    if "metrics/precision(M)" in stats:
        s_mp, s_mr, s_map50, s_mean_ap = (
            stats["metrics/precision(M)"],
            stats["metrics/recall(M)"],
            stats["metrics/mAP50(M)"],
            stats["metrics/mAP50-95(M)"],
        )
        # 結果をプリント
        print(" Macro average mean:")
        s = ("%20s" + "%12s" * 6) % (
            "Class",
            "Images",
            "Labels",
            "Precision",
            "Recall",
            "mAP@.5",
            "mAP@.5:.95",
        )
        print(s)
        pf = "%20s" + "%12i" * 2 + "%12.3g" * 4 # print format
        print(pf % ("all", total_images, total_objects, s_mp, s_mr, s_map50, s_mean_ap))

from ultralytics.utils import DEFAULT_CFG
from ultralytics.cfg import get_cfg
from ultralytics.data.converter import coco80_to_coco91_class
from ultralytics.data.utils import check_det_dataset

args = get_cfg(cfg=DEFAULT_CFG)
args.data = str(CFG_PATH)

det_validator = det_model.task_map[det_model.task]["validator"](args=args)

det_validator.data = check_det_dataset(args.data)
det_validator.stride = 32
det_data_loader = det_validator.get_dataloader(OUT_DIR / "coco", 1)

det_validator.is_coco = True
det_validator.class_map = coco80_to_coco91_class()
det_validator.names = det_model.model.names
det_validator.metrics.names = det_validator.names
det_validator.nc = det_model.model.model[-1].nc

NUM_TEST_SAMPLES = 300

fp_det_stats = test(det_ov_model, core, det_data_loader, det_validator, num_samples=NUM_TEST_SAMPLES)

print_stats(fp_det_stats, det_validator.seen, det_validator.nt_per_class.sum())

import ipywidgets as widgets

int8_model_det_path = models_dir / f"{DET_MODEL_NAME}_openvino_int8_model/{DET_MODEL_NAME}.xml"

to_quantize = widgets.Checkbox(
    value=True,
    description="Quantization",
    disabled=False,
)

to_quantize

# skip_kernel_extension モジュールを取得
r = requests.get(

url="https://raw.githubusercontent.com/openvinotoolkit/openvino_notebooks/latest/utils/skip_kernel_extension.py",
)
open("skip_kernel_extension.py", "w").write(r.text)

%load_ext skip_kernel_extension

%%skip not $to_quantize.value

import nncf
from typing import Dict

def transform_fn(data_item:Dict):
    """
    Quantization transform function.Extracts and preprocess input data from dataloader item for quantization.
    Parameters:
        data_item: Dict with data item produced by DataLoader during iteration
    Returns:
        input_tensor: Input data for quantization
    """
    input_tensor = det_validator.preprocess(data_item)['img'].numpy()
    return input_tensor

quantization_dataset = nncf.Dataset(det_data_loader, transform_fn)

%%skip not $to_quantize.value

ignored_scope = nncf.IgnoredScope(
    names=[
        "__module.model.22.cv3.0.0.conv/aten::_convolution/Convolution", # 後処理サブグラフ内
            "__module.model.16.conv/aten::_convolution/Convolution",
            "__module.model.22.cv2.0.0.conv/aten::_convolution/Convolution",
            "__module.model.6.cv1.conv/aten::_convolution/Convolution",
            "__module.model.22.cv3.1.1.conv/aten::_convolution/Convolution",
            "__module.model.21.cv2.conv/aten::_convolution/Convolution",
            "__module.model.21.m.0.cv1.conv/aten::_convolution/Convolution",
            "__module.model.22/aten::add/Add_6",
            "__module.model.22/aten::sub/Subtract",
            "__module.model.7.conv/aten::_convolution/Convolution",
            "__module.model.12.cv1.conv/aten::_convolution/Convolution",
            "__module.model.4.cv1.conv/aten::_convolution/Convolution",
            "__module.model.22.cv2.2.1.conv/aten::_convolution/Convolution",
            "__module.model.22.cv2.0.1.conv/aten::_convolution/Convolution",
            "__module.model.22.dfl.conv/aten::_convolution/Convolution",
            "__module.model.22.cv3.2.2/aten::_convolution/Convolution",
            "__module.model.22.cv3.0.2/aten::_convolution/Convolution",
            "__module.model.15.cv1.conv/aten::_convolution/Convolution",
            "__module.model.5.conv/aten::_convolution/Convolution",
            "__module.model.0.conv/aten::_convolution/Convolution"
    ]
)

# 検出モデル
quantized_det_model = nncf.quantize(
    det_ov_model,
    quantization_dataset,
    preset=nncf.QuantizationPreset.MIXED,
    ignored_scope=ignored_scope
)

%%skip not $to_quantize.value

print(f"Quantized detection model will be saved to {int8_model_det_path}")
ov.save_model(quantized_det_model, str(int8_model_det_path))

%%skip not $to_quantize.value

device

%%skip not $to_quantize.value

ov_config = {}

if device.value != "CPU":
    quantized_det_model.reshape({0: [1, 3, 640, 640]})
if "GPU" in device.value or ("AUTO" in device.value and "GPU" in core.available_devices):
    ov_config = {"GPU_DISABLE_WINOGRAD_CONVOLUTION": "YES"}
quantized_det_compiled_model = core.compile_model(quantized_det_model, device.value, ov_config)

def infer(*args):
    result = quantized_det_compiled_model(args)
    return torch.from_numpy(result[0])

det_model.predictor.inference = infer

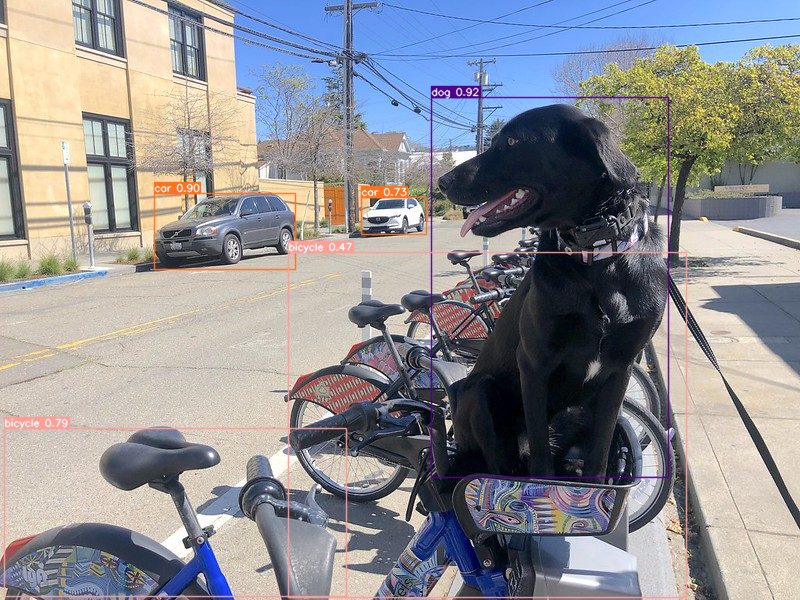

res = det_model(IMAGE_PATH)
display(Image.fromarray(res[0].plot()[:, :, ::-1]))

%%skip not $to_quantize.value

device

if int8_model_det_path.exists():     # 推論 FP32 モデル model (OpenVINO IR)
    !benchmark_app -m $det_model_path -d $device.value -api async -shape "[1,3,640,640]"

if int8_model_det_path.exists():
    # 推論 INT8 モデル (OpenVINO IR)
    !benchmark_app -m $int8_model_det_path -d $device.value -api async -shape "[1,3,640,640]" -t 15

%%skip not $to_quantize.value

int8_det_stats = test(quantized_det_model, core, det_data_loader, det_validator, num_samples=NUM_TEST_SAMPLES)

%%skip not $to_quantize.value

print("FP32 model accuracy")
print_stats(fp_det_stats, det_validator.seen, det_validator.nt_per_class.sum())

print("INT8 model accuracy")
print_stats(int8_det_stats, det_validator.seen, det_validator.nt_per_class.sum())

import collections
import time
from IPython import display

# 物体検出を実行するメイン処理関数
def run_object_detection(
    source=0,
    flip=False,
    use_popup=False,
    skip_first_frames=0,
    model=det_model,
    device=device.value,
):
    player = None
    ov_config = {}
    if device != "CPU":
        model.reshape({0: [1, 3, 640, 640]})
    if "GPU" in device or ("AUTO" in device and "GPU" in core.available_devices):
        ov_config = {"GPU_DISABLE_WINOGRAD_CONVOLUTION": "YES"}
    compiled_model = core.compile_model(model, device, ov_config)

    def infer(*args):
        result = compiled_model(args)
        return torch.from_numpy(result[0])

    det_model.predictor.inference = infer

    try: # ターゲット fps で再生するビデオプレーヤーを作成
        player = VideoPlayer(source=source, flip=flip, fps=30, skip_first_frames=skip_first_frames)
        # キャプチャーを開始
        player.start()
        if use_popup:
            title = "Press ESC to Exit"
            cv2.namedWindow(winname=title, flags=cv2.WINDOW_GUI_NORMAL | cv2.WINDOW_AUTOSIZE)

        processing_times = collections.deque()
        while True:
            # フレームをグラブ
            frame = player.next()
            if frame is None:
                print("Source ended")
                break
            # フレームがフル HD より大きい場合は、サイズを縮小してパフォーマンスを向上させます
            scale = 1280 / max(frame.shape)
            if scale < 1:
                frame = cv2.resize(
                    src=frame,
                    dsize=None,
                    fx=scale,
                    fy=scale,
                    interpolation=cv2.INTER_AREA,
                )
            # 結果を取得
            input_image = np.array(frame)

            start_time = time.time()
            detections = det_model(input_image)
            stop_time = time.time()
            frame = detections[0].plot()

            processing_times.append(stop_time - start_time)
            # 最後の 200 フレームの処理時間を使用
            if len(processing_times) > 200:
                processing_times.popleft()

            _, f_width = frame.shape[:2]
            # 平均処理時間 [ms]
            processing_time = np.mean(processing_times) * 1000
            fps = 1000 / processing_time

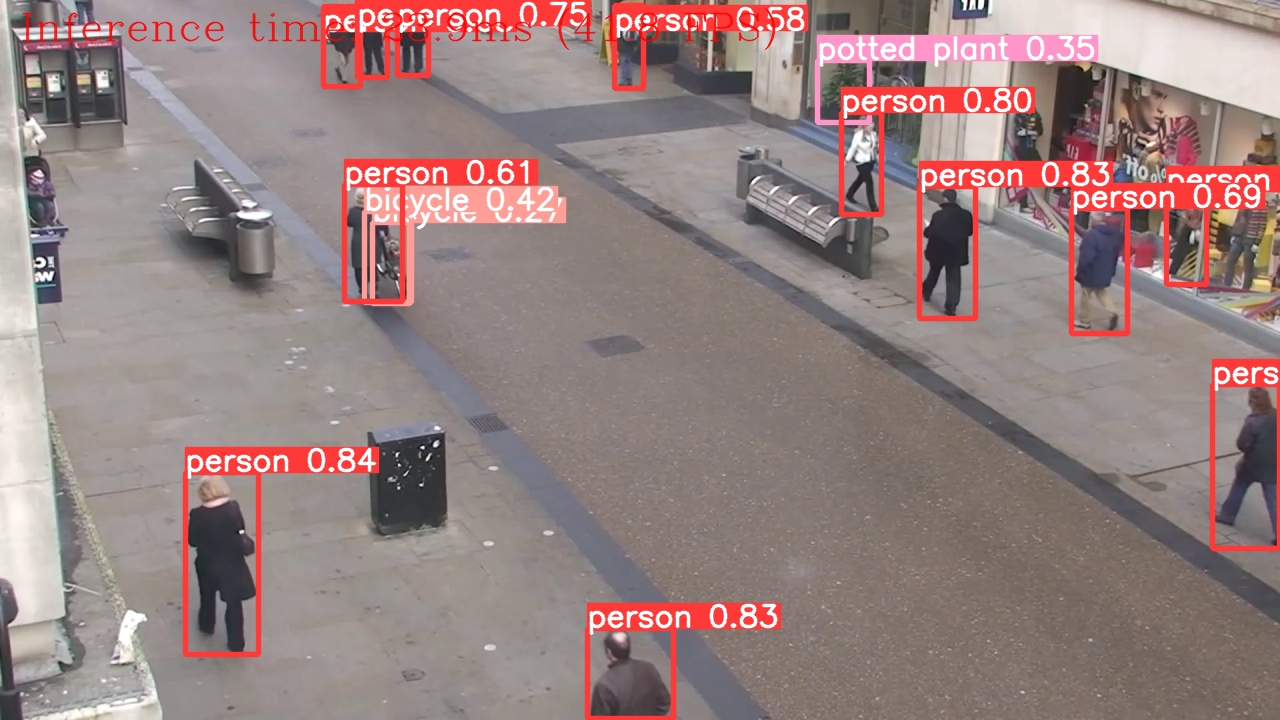

            cv2.putText(
                img=frame,
                text=f"Inference time: {processing_time:.1f}ms ({fps:.1f} FPS)",
                org=(20, 40),
                fontFace=cv2.FONT_HERSHEY_COMPLEX,
                fontScale=f_width / 1000,
                color=(0, 0, 255),
                thickness=1,
                lineType=cv2.LINE_AA,
            )

            # ちらつきがある場合はこの回避策を使用
            if use_popup:
                cv2.imshow(winname=title, mat=frame)
                key = cv2.waitKey(1)
                # escape = 27
                if key == 27:
                    break
                else:
                    # numpy 配列を jpg にエンコード
                    _, encoded_img = cv2.imencode(ext=".jpg", img=frame, params=[cv2.IMWRITE_JPEG_QUALITY, 100])
                    # IPython イメージを作成
                    i = display.Image(data=encoded_img)
                    # このノートブックに画像を表示
                    display.clear_output(wait=True)
                    display.display(i)

# ctrl-c
except KeyboardInterrupt:
    print("Interrupted")
# 異なるエラー
except RuntimeError as e:
    print(e)
finally:
    if player is not None:
        # キャプチャーを停止
        Player.stop().stop()
    if use_popup:
        cv2.destroyAllWindows()

WEBCAM_INFERENCE = False

if WEBCAM_INFERENCE:
    VIDEO_SOURCE = 0 # ウェブカメラ
else:
    VIDEO_SOURCE = "https://storage.openvinotoolkit.org/repositories/openvino_notebooks/data/data/video/people.mp4"

device

run_object_detection(
    source=VIDEO_SOURCE,
    flip=True,
    use_popup=False,
    model=det_ov_model,
    device=device.value,
)
