PaddlePaddle モデルを OpenVINO™ IR に変換#

classifier = PaddleClas(inference_model_dir=MODEL_DIR / "{}_infer".format(MODEL_NAME))
result = next(classifier.predict(IMAGE_FILENAME))
class_names = result[0]["label_names"]
scores = result[0]["scores"]

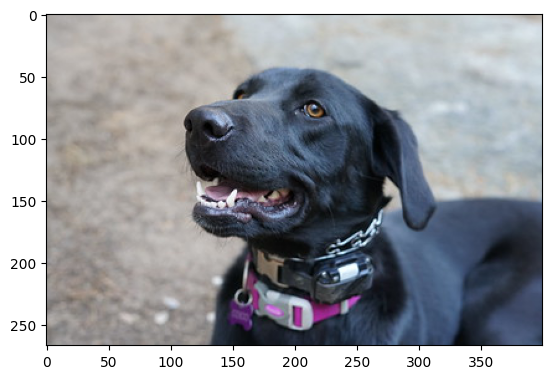

image = Image.open(IMAGE_FILENAME)
plt.imshow(image)
for class_name, softmax_probability in zip(class_names, scores):
    print(f"{class_name}, {softmax_probability:.5f}")

# classifier??

# classifier.get_config()

preprocess_ops = classifier.predictor.preprocess_ops

def process_image(image):
    for op in preprocess_ops:
        image = op(image)
    return image

pil_image = Image.open(IMAGE_FILENAME)
processed_image = process_image(np.array(pil_image))
print(f"Processed image shape: {processed_image.shape}")

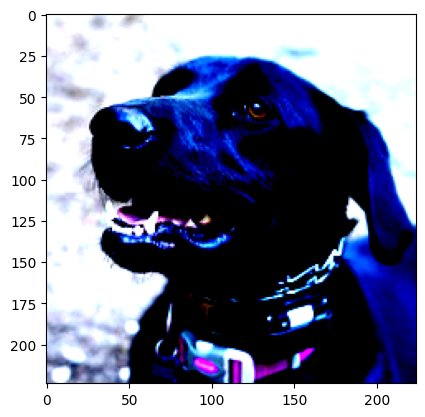

# 処理された画像は (C、H、W) 形式です。画像を表示するには (H、W、C) に変換します
plt.imshow(np.transpose(processed_image, (1, 2, 0)))

class_id_map_file = classifier.get_config()["PostProcess"]["Topk"]["class_id_map_file"]
class_id_map = {}
with open(class_id_map_file, "r") as fin:
    lines = fin.readlines()
    for line in lines:
        partition = line.split("\n")[0].partition(" ")
        class_id_map[int(partition[0])] = str(partition[-1])

model_xml = Path(MODEL_NAME).with_suffix(".xml")
if not model_xml.exists():
    ov_model = ov.convert_model("model/MobileNetV3_large_x1_0_infer/inference.pdmodel")
    ov.save_model(ov_model, str(model_xml))
else:
    print(f"{model_xml} already exists.")

import ipywidgets as widgets

core = ov.Core()
device = widgets.Dropdown(
    options=core.available_devices + ["AUTO"],
    value="AUTO",
    description="Device:",
    disabled=False,
)

device

# OpenVINO ランタイムと OpenVINO IR モデルをロード
core = ov.Core()
model = core.read_model(model_xml)
compiled_model = core.compile_model(model=model, device_name=device.value)

# モデル出力を取得
output_layer = compiled_model.output(0)

# 入力画像の読み取り、表示、前処理
# process_image のソースについては、"PaddlePaddle モデルの推論を表示" セクションを参照
image = Image.open(IMAGE_FILENAME)
plt.imshow(image)
input_image = process_image(np.array(image))[None,]

# 推論を実行
ov_result = compiled_model([input_image])[output_layer][0]

# 上位 3 つの値を見つける
top_indices = np.argsort(ov_result)[-3:][::-1]
top_scores = ov_result[top_indices]

# PaddlePaddle 分類器と同じラベルを使用して、推論結果をクラス名に変換
for index, softmax_probability in zip(top_indices, top_scores):
    print(f"{class_id_map[index]}, {softmax_probability:.5f}")

num_images = 50

image = Image.open(fp=IMAGE_FILENAME)

# デバイス情報を表示
core = ov.Core()
devices = core.available_devices

for device_name in devices:
    device_full_name = core.get_property(device_name, "FULL_DEVICE_NAME")
    print(f"{device_name}: {device_full_name}")

# PaddlePaddle モデルでの推論速度を表示
start = time.perf_counter()
for _ in range(num_images):
    result = next(classifier.predict(np.array(image)))
end = time.perf_counter()
time_ir = end - start
print(f"PaddlePaddle model on CPU: {time_ir/num_images:.4f} " f"seconds per image, FPS: {num_images/time_ir:.2f}\n")
print("PaddlePaddle result:")
class_names = result[0]["label_names"]
scores = result[0]["scores"]
for class_name, softmax_probability in zip(class_names, scores):
    print(f"{class_name}, {softmax_probability:.5f}")
plt.imshow(image);

device

# OpenVINO IR モデルの推論速度を表示
compiled_model = core.compile_model(model=model, device_name=device.value)
output_layer = compiled_model.output(0)

start = time.perf_counter()
input_image = process_image(np.array(image))[None,]
for _ in range(num_images):
    ie_result = compiled_model([input_image])[output_layer][0]
    top_indices = np.argsort(ie_result)[-5:][::-1]
    top_softmax = ie_result[top_indices]

end = time.perf_counter()
time_ir = end - start

print(f"OpenVINO IR model in OpenVINO Runtime ({device.value}): {time_ir/num_images:.4f} " f"seconds per image, FPS: {num_images/time_ir:.2f}")
print()
print("OpenVINO result:")
for index, softmax_probability in zip(top_indices, top_softmax):
    print(f"{class_id_map[index]}, {softmax_probability:.5f}")
plt.imshow(image);
