OpenVINO を使用した YOLOv10 の変換と最適化#

import os

os.environ["GIT_CLONE_PROTECTION_ACTIVE"] = "false"

%pip install -q "nncf>=2.11.0"
%pip install --pre -Uq openvino --extra-index-url https://storage.openvinotoolkit.org/simple/wheels/nightly
%pip install -q "git+https://github.com/THU-MIG/yolov10.git" --extra-index-url https://download.pytorch.org/whl/cpu
%pip install -q "torch>=2.1" "torchvision>=0.16" tqdm opencv-python "gradio>=4.19" --extra-index-url https://download.pytorch.org/whl/cpu

from pathlib import Path

# `notebook_utils` モジュールを取得
import requests

r = requests.get(

    url="https://raw.githubusercontent.com/openvinotoolkit/openvino_notebooks/latest/utils/notebook_utils.py",
)

open("notebook_utils.py", "w").write(r.text)

from notebook_utils import download_file

models_dir = Path("./models")
models_dir.mkdir(exist_ok=True)

model_weights_url = "https://github.com/jameslahm/yolov10/releases/download/v1.0/yolov10n.pt"
file_name = model_weights_url.split("/")[-1]
model_name = file_name.replace(".pt", "")

download_file(model_weights_url, directory=models_dir)

import types
from ultralytics.utils import ops, yaml_load, yaml_save
from ultralytics import YOLOv10
import torch

detection_labels = {
    0: "person",
    1: "bicycle",
    2: "car",
    3: "motorcycle",
    4: "airplane",
    5: "bus",
    6: "train",
    7: "truck",
    8: "boat",
    9: "traffic light",
    10: "fire hydrant",
    11: "stop sign",
    12: "parking meter",
    13: "bench",
    14: "bird",
    15: "cat",
    16: "dog",
    17: "horse",
    18: "sheep",
    19: "cow",
    20: "elephant",
    21: "bear",
    22: "zebra",
    23: "giraffe",
    24: "backpack",
    25: "umbrella",
    26: "handbag",
    27: "tie",
    28: "suitcase",
    29: "frisbee",
    30: "skis",
    31: "snowboard",
    32: "sports ball",
    33: "kite",
    34: "baseball bat",
    35: "baseball glove",
    36: "skateboard",
    37: "surfboard",
    38: "tennis racket",
    39: "bottle",
    40: "wine glass",
    41: "cup",
    42: "fork",
    43: "knife",
    44: "spoon",
    45: "bowl",
    46: "banana",
    47: "apple",
    48: "sandwich",
    49: "orange",
    50: "broccoli",
    51: "carrot",
    52: "hot dog",
    53: "pizza",
    54: "donut",
    55: "cake",
    56: "chair",
    57: "couch",
    58: "potted plant",
    59: "bed",
    60: "dining table",
    61: "toilet",
    62: "tv",
    63: "laptop",
    64: "mouse",
    65: "remote",
    66: "keyboard",
    67: "cell phone",
    68: "microwave",
    69: "oven",
    70: "toaster",
    71: "sink",
    72: "refrigerator",
    73: "book",
    74: "clock",
    75: "vase",
    76: "scissors",
    77: "teddy bear",
    78: "hair drier",
    79: "toothbrush",
}

def v10_det_head_forward(self, x):
    one2one = self.forward_feat([xi.detach() for xi in x], self.one2one_cv2, self.one2one_cv3)
    if not self.export:
        one2many = super().forward(x)

    if not self.training:
        one2one = self.inference(one2one)
        if not self.export:
            return {"one2many": one2many, "one2one": one2one}
        else:
            assert self.max_det != -1
            boxes, scores, labels = ops.v10postprocess(one2one.permute(0, 2, 1), self.max_det, self.nc)
            return torch.cat(
                [boxes, scores.unsqueeze(-1), labels.unsqueeze(-1).to(boxes.dtype)],
                dim=-1,
            )
    else:
        return {"one2many": one2many, "one2one": one2one}

ov_model_path = models_dir / f"{model_name}_openvino_model/{model_name}.xml"
if not ov_model_path.exists():
    model = YOLOv10(models_dir / file_name)
    model.model.model[-1].forward = types.MethodType(v10_det_head_forward, model.model.model[-1])
    model.export(format="openvino", dynamic=True, half=True)
    config = yaml_load(ov_model_path.parent / "metadata.yaml")
    config["names"] = detection_labels
    yaml_save(ov_model_path.parent / "metadata.yaml", config)

ov_yolo_model = YOLOv10(ov_model_path.parent, task="detect")

from PIL import Image

IMAGE_PATH = Path("./data/coco_bike.jpg")
download_file(
    url="https://storage.openvinotoolkit.org/repositories/openvino_notebooks/data/data/image/coco_bike.jpg",
    filename=IMAGE_PATH.name,
    directory=IMAGE_PATH.parent,
)

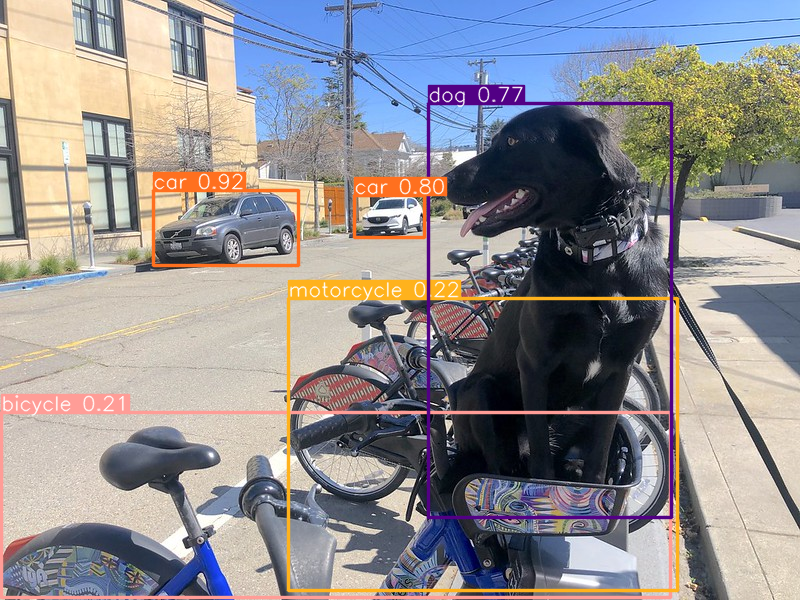

res = ov_yolo_model(IMAGE_PATH, iou=0.45, conf=0.2)
Image.fromarray(res[0].plot()[:, :, ::-1])

import openvino as ov

import ipywidgets as widgets

core = ov.Core()

device = widgets.Dropdown(
    options=core.available_devices + ["AUTO"],
    value="CPU",
    description="Device:",
    disabled=False,
)

device

ov_model = core.read_model(ov_model_path)

# 選択したデバイスにモデルをロード
if "GPU" in device.value or "NPU" in device.value:
    ov_model.reshape({0: [1, 3, 640, 640]})
ov_config = {}
if "GPU" in device.value:
    ov_config = {"GPU_DISABLE_WINOGRAD_CONVOLUTION": "YES"}
det_compiled_model = core.compile_model(ov_model, device.value, ov_config)

ov_yolo_model.predictor.model.ov_compiled_model = det_compiled_model

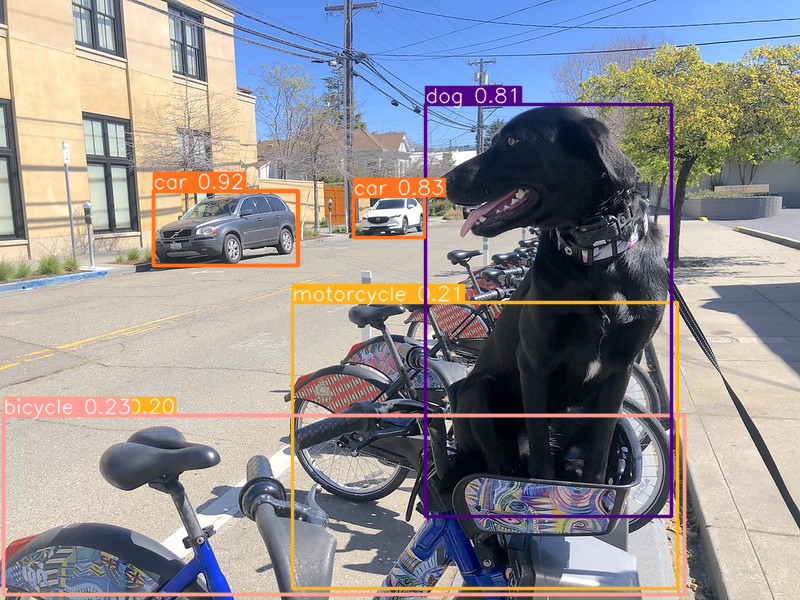

res = ov_yolo_model(IMAGE_PATH, iou=0.45, conf=0.2)

Image.fromarray(res[0].plot()[:, :, ::-1])

import ipywidgets as widgets

int8_model_det_path = models_dir / "int8" / f"{model_name}_openvino_model/{model_name}.xml" ov_yolo_int8_model = None

to_quantize = widgets.Checkbox(
    value=True,
    description="Quantization",
    disabled=False,
)

to_quantize

# skip_kernel_extension モジュールを取得
r = requests.get(

url="https://raw.githubusercontent.com/openvinotoolkit/openvino_notebooks/latest/utils/skip_kernel_extension.py",
)
open("skip_kernel_extension.py", "w").write(r.text)

%load_ext skip_kernel_extension

import collections
import time
from IPython import display
import cv2
import numpy as np

# 物体検出を実行するメイン処理関数
def run_object_detection(
    source=0,
    flip=False,
    use_popup=False,
    skip_first_frames=0,
    det_model=ov_yolo_int8_model,
    device=device.value,
):
    player = None
    try:
        # ターゲット fps で再生するビデオプレーヤーを作成
        player = VideoPlayer(source=source, flip=flip, fps=30, skip_first_frames=skip_first_frames)
        # キャプチャー開始
        player.start()
        if use_popup:
            title = "Press ESC to Exit"
            cv2.namedWindow(winname=title, flags=cv2.WINDOW_GUI_NORMAL | cv2.WINDOW_AUTOSIZE)

        processing_times = collections.deque()
        while True:
            # フレームをグラブ
            frame = player.next()
            if frame is None:
                print("Source ended")
                break
            # フレームがフル HD より大きい場合は、サイズを縮小してパフォーマンスを向上させます
            scale = 1280 / max(frame.shape)
            if scale < 1:
                frame = cv2.resize(
                    src=frame,
                    dsize=None,
                    fx=scale,
                    fy=scale,
                    interpolation=cv2.INTER_AREA,
                )
            # 結果を取得
            input_image = np.array(frame)

            start_time = time.time()
            detections = det_model(input_image, iou=0.45, conf=0.2, verbose=False)
            stop_time = time.time()
            frame = detections[0].plot()

            processing_times.append(stop_time - start_time)
            # 最後の 200 フレームの処理時間を使用
            if len(processing_times) > 200:
                processing_times.popleft()

            _, f_width = frame.shape[:2]
            # 平均処理時間 [ms]
            processing_time = np.mean(processing_times) * 1000
            fps = 1000 / processing_time
            cv2.putText(
                img=frame,
                text=f"Inference time: {processing_time:.1f}ms ({fps:.1f} FPS)",
                org=(20, 40),
                fontFace=cv2.FONT_HERSHEY_COMPLEX,
                fontScale=f_width / 1000,
                color=(0, 0, 255),
                thickness=1,
                lineType=cv2.LINE_AA,
            )

            # ちらつきがある場合はこの回避策を使用
            if use_popup:
                cv2.imshow(winname=title, mat=frame)
                key = cv2.waitKey(1)
                # escape = 27
                if key == 27:
                    break
                else:
                    # numpy 配列を jpg にエンコード
                    _, encoded_img = cv2.imencode(ext=".jpg", img=frame, params=[cv2.IMWRITE_JPEG_QUALITY, 100])
                    # IPython イメージを作成
                    i = display.Image(data=encoded_img)
                    # このノートブックに画像を表示
                    display.clear_output(wait=True)
                    display.display(i)

# ctrl-c
except KeyboardInterrupt:
    print("Interrupted")
# 異なるエラー
except RuntimeError as e:
    print(e)
finally:
    if player is not None:
        # キャプチャーを停止
        player.stop().stop()
    if use_popup:
        cv2.destroyAllWindows()

use_int8 = widgets.Checkbox(
    value=ov_yolo_int8_model is not None,
    description="Use int8 model",
    disabled=ov_yolo_int8_model is None,
)

use_int8

WEBCAM_INFERENCE = False

if WEBCAM_INFERENCE:     VIDEO_SOURCE = 0 # ウェブカメラ
else:
    download_file(
        "https://storage.openvinotoolkit.org/repositories/openvino_notebooks/data/data/video/people.mp4",
        directory="data",
    )
    VIDEO_SOURCE = "data/people.mp4"

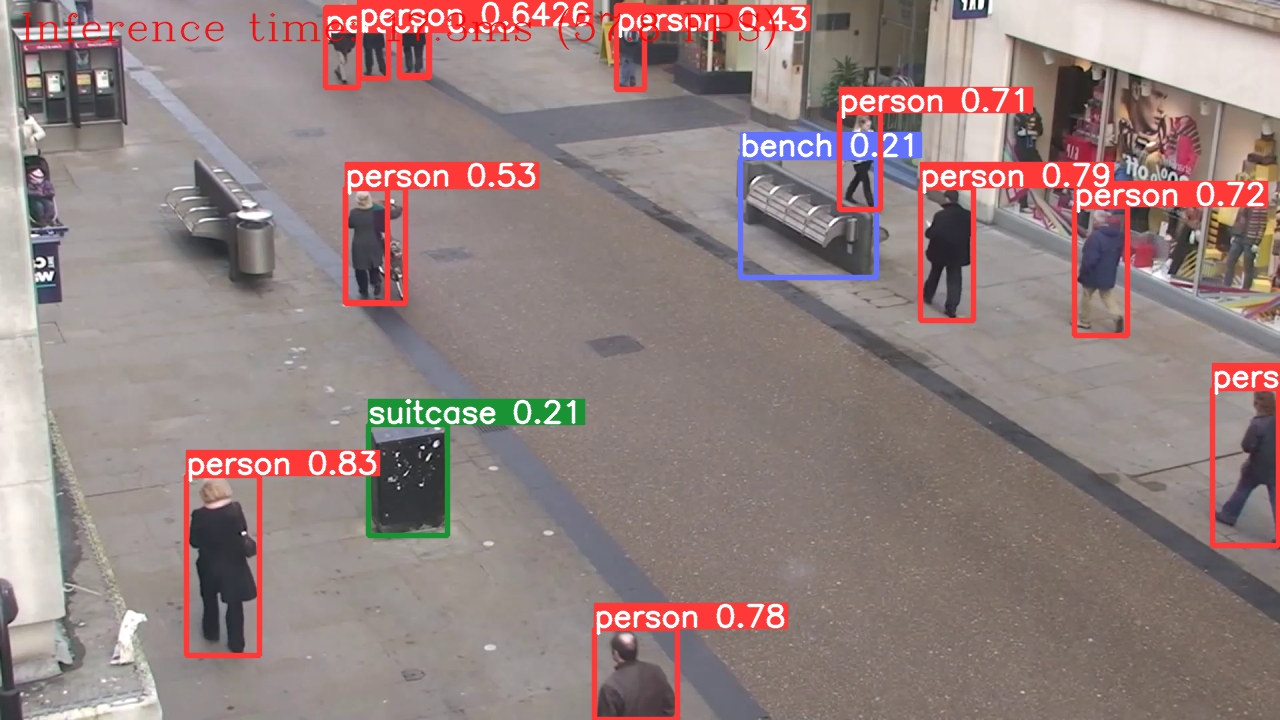

Run_object_detection((
    det_model=ov_yolo_model if not use_int8.value else ov_yolo_int8_model,
    source=VIDEO_SOURCE,
    flip=True,
    use_popup=False,
)
