EfficientSAM と OpenVINO によるオブジェクトのセグメント化#

import platform

if platform.system() != "Windows":
     %pip install -q "matplotlib>=3.4"
else:
     %pip install -q "matplotlib>=3.4,<3.7"
%pip install -q "openvino>=2023.3.0" "nncf>=2.7.0" opencv-python "gradio>=4.13" torch torchvision tqdm --extra-index-url https://download.pytorch.org/whl/cpu

from pathlib import Path

repo_dir = Path("EfficientSAM")

if not repo_dir.exists():
     !git clone https://github.com/yformer/EfficientSAM.git
%cd $repo_dir

from efficient_sam.build_efficient_sam import (
    build_efficient_sam_vitt,
    build_efficient_sam_vits,
)
import zipfile

MODELS_LIST = {
    "efficient-sam-vitt": build_efficient_sam_vitt,
    "efficient-sam-vits": build_efficient_sam_vits,
}

# EfficientSAM-S チェックポイント・ファイルは 100 MB を超えるため、zip ファイルで保存
with zipfile.ZipFile("weights/efficient_sam_vits.pt.zip", "r") as zip_ref:
    zip_ref.extractall("weights")

import ipywidgets as widgets

model_ids = list(MODELS_LIST)

model_id = widgets.Dropdown(
    options=model_ids,
    value=model_ids[0],
    description="Model:",
    disabled=False,
)

model_id

pt_model = MODELS_LIST[model_id.value]()

pt_model.eval();

import openvino as ov

core = ov.Core()

ov_model_path = Path(f"{model_id.value}.xml")

if not ov_model_path.exists():
    ov_model = ov.convert_model(pt_model, example_input=example_input)
    ov.save_model(ov_model, ov_model_path)
else:
    ov_model = core.read_model(ov_model_path)

to_quantize = widgets.Checkbox(
    value=True,
    description="Quantization",
    disabled=False,
)

to_quantize

# `skip_kernel_extension` モジュールを取得
import requests

r = requests.get(

url="https://raw.githubusercontent.com/openvinotoolkit/openvino_notebooks/latest/utils/skip_kernel_extension.py",
)
open("skip_kernel_extension.py", "w").write(r.text)

%load_ext skip_kernel_extension

%%skip not $to_quantize.value

compiled_model = core.compile_model(quantized_model, device.value)

result = compiled_model(example_input)

predicted_logits, predicted_iou = result[0], result[1]

predicted_mask = postprocess_results(predicted_iou, predicted_logits)

plt.figure(figsize=(20, 20))
plt.axis("off")
plt.imshow(image)

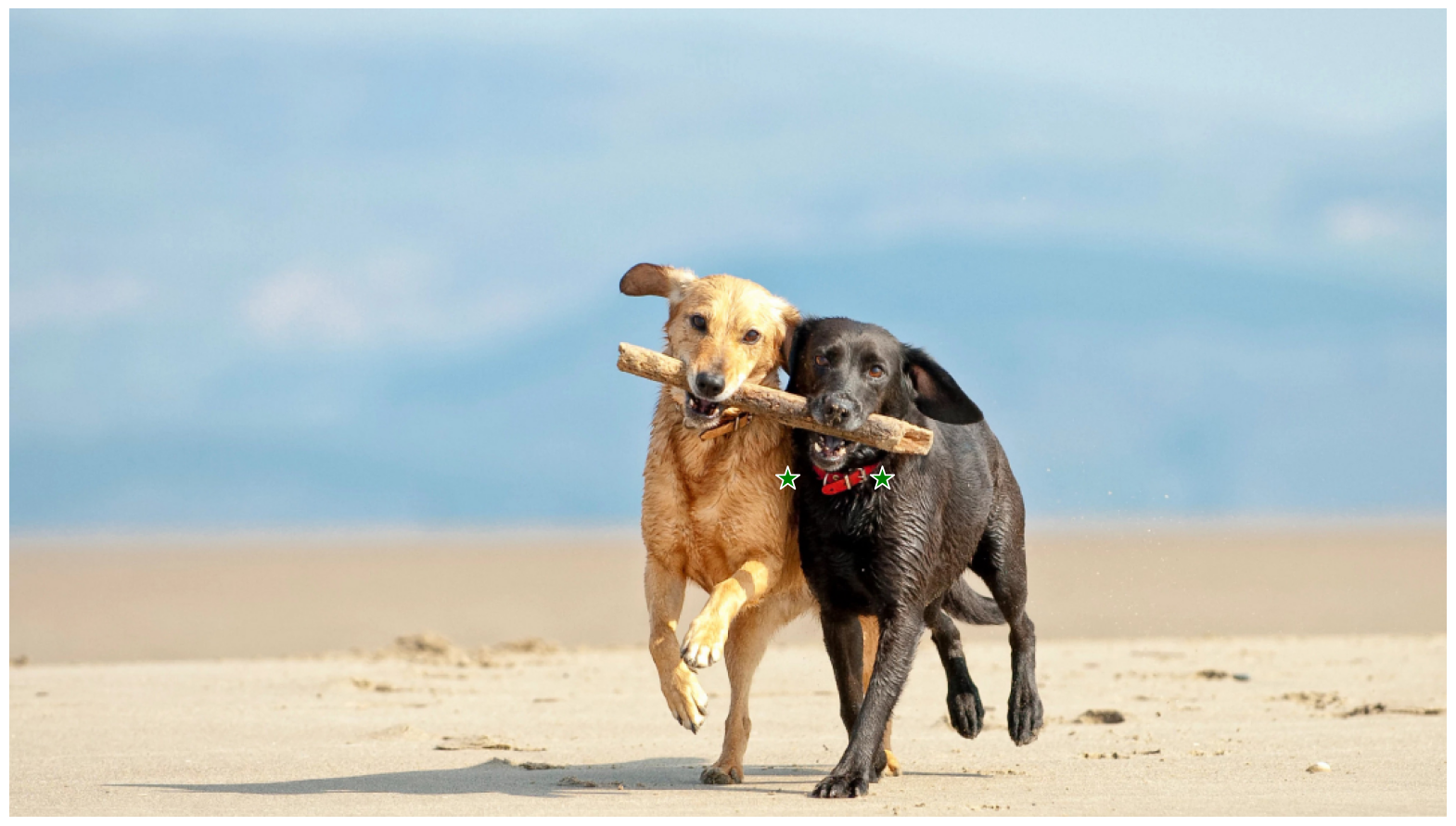

show_points(np.array(input_points), np.array(input_labels), plt.gca())
plt.figure(figsize=(20, 20))
plt.axis("off")
plt.imshow(image)
show_anns(predicted_mask, plt.gca())

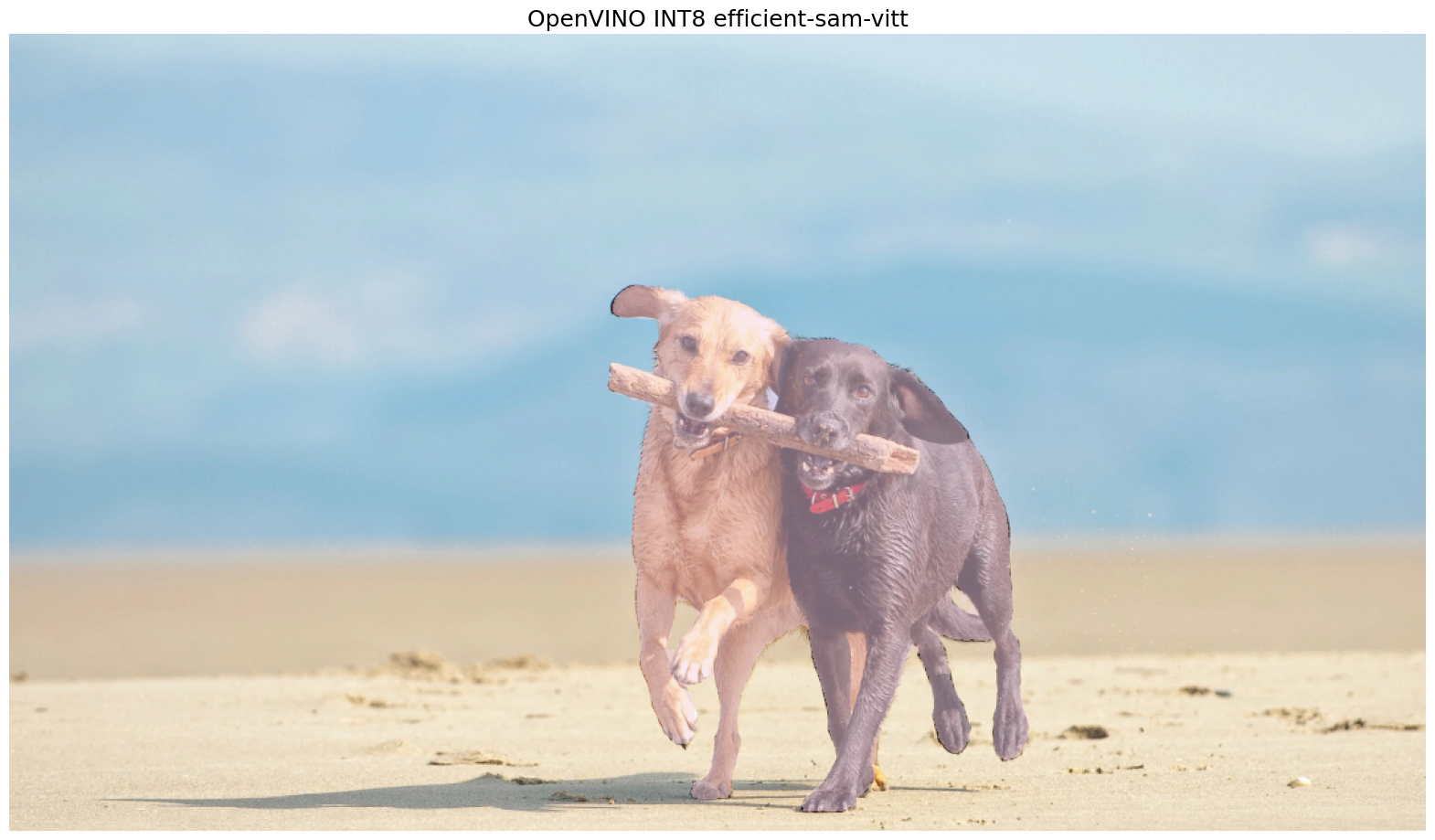

plt.title(f"OpenVINO INT8 {model_id.value}", fontsize=18)
plt.show()

import copy
import gradio as gr
import numpy as np
from PIL import ImageDraw, Image
import cv2
import matplotlib.pyplot as plt

example_images = [
    "https://github.com/openvinotoolkit/openvino_notebooks/assets/29454499/b8083dd5-1ce7-43bf-8b09-a2ebc280c86e",
    "https://github.com/openvinotoolkit/openvino_notebooks/assets/29454499/9a90595d-70e7-469b-bdaf-469ef4f56fa2",
    "https://github.com/openvinotoolkit/openvino_notebooks/assets/29454499/b626c123-9fa2-4aa6-9929-30565991bf0c",
]

examples_dir = Path("examples")
examples_dir.mkdir(exist_ok=True)

for img_id, image_url in enumerate(example_images):
    r = requests.get(image_url)
    img_path = examples_dir / f"example_{img_id}.jpg"
    with img_path.open("wb") as f:
        f.write(r.content)

def sigmoid(x):
    return 1 / (1 + np.exp(-x))

def clear():
    return None, None, [], []

def format_results(masks, scores, logits, filter=0):
    annotations = []
    n = len(scores)
    for i in range(n):
        annotation = {}

        mask = masks[i]
        tmp = np.where(mask != 0)
        if np.sum(mask) < filter:
            continue
        annotation["id"] = i
        annotation["segmentation"] = mask
        annotation["bbox"] = [
            np.min(tmp[0]),
            np.min(tmp[1]),
            np.max(tmp[1]),
            np.max(tmp[0]),
        ]
        annotation["score"] = scores[i]
        annotation["area"] = annotation["segmentation"].sum()
        annotations.append(annotation)
    return annotations

def point_prompt(masks, points, point_label, target_height, target_width): # numpy
    h = masks[0]["segmentation"].shape[0]
    w = masks[0]["segmentation"].shape[1]
    if h != target_height or w != target_width:
        points = [[int(point[0] * w / target_width), int(point[1] * h / target_height)] for point in points]
    onemask = np.zeros((h, w))
    for i, annotation in enumerate(masks):
        if isinstance(annotation, dict):
            mask = annotation["segmentation"]
        else:
            mask = annotation
        for i, point in enumerate(points):
            if point[1] < mask.shape[0] and point[0] < mask.shape[1]:
                if mask[point[1], point[0]] == 1 and point_label[i] == 1:
                    onemask += mask
                if mask[point[1], point[0]] == 1 and point_label[i] == 0:
                    onemask -= mask
    onemask = onemask >= 1
    return onemask, 0

def show_mask(
    annotation,
    ax,
    random_color=False,
    bbox=None,
    retinamask=True,
    target_height=960,
    target_width=960,
):
    mask_sum = annotation.shape[0]
    height = annotation.shape[1]
    weight = annotation.shape[2]
    # アノテーションはエリア別にソートされます
    areas = np.sum(annotation, axis=(1, 2))
    sorted_indices = np.argsort(areas)[::1]
    annotation = annotation[sorted_indices]

    index = (annotation != 0).argmax(axis=0)
    if random_color:
        color = np.random.random((mask_sum, 1, 1, 3))
    else:
        color = np.ones((mask_sum, 1, 1, 3)) * np.array([30 / 255, 144 / 255, 255 / 255])
    transparency = np.ones((mask_sum, 1, 1, 1)) * 0.6
    visual = np.concatenate([color, transparency], axis=-1)
    mask_image = np.expand_dims(annotation, -1) * visual

    mask = np.zeros((height, weight, 4))

    h_indices, w_indices = np.meshgrid(np.arange(height), np.arange(weight), indexing="ij")
    indices = (index[h_indices, w_indices], h_indices, w_indices, slice(None))

    mask[h_indices, w_indices, :]= mask_image[indices]
    if bbox is not None:
        x1, y1, x2, y2 = bbox
        ax.add_patch(plt.Rectangle((x1, y1), x2 - x1, y2 - y1, fill=False, edgecolor="b", linewidth=1))

    if not retinamask:
        mask = cv2.resize(mask, (target_width, target_height), interpolation=cv2.INTER_NEAREST)

    return mask

def process(
    annotations,
    image,
    scale,
    better_quality=False,
    mask_random_color=True,
    bbox=None,
    points=None,
    use_retina=True,
    withContours=True,
):
    if isinstance(annotations[0], dict):
        annotations = [annotation["segmentation"] for annotation in annotations]

    original_h = image.height
    original_w = image.width
    if better_quality:
        if isinstance(annotations[0], torch.Tensor):
            annotations = np.array(annotations)
        for i, mask in enumerate(annotations):
            mask = cv2.morphologyEx(mask.astype(np.uint8), cv2.MORPH_CLOSE, np.ones((3, 3), np.uint8))
            annotations[i] = cv2.morphologyEx(mask.astype(np.uint8), cv2.MORPH_OPEN, np.ones((8, 8), np.uint8))
    annotations = np.array(annotations)
    inner_mask = show_mask(
        annotations,
        plt.gca(),
        random_color=mask_random_color,
        bbox=bbox,
        retinamask=use_retina,
        target_height=original_h,
        target_width=original_w,
    )

    if isinstance(annotations, torch.Tensor):
        annotations = annotations.cpu().numpy()

    if withContours:
        contour_all = []
        temp = np.zeros((original_h, original_w, 1))
        for i, mask in enumerate(annotations):
            if isinstance(mask, dict):
                mask = mask["segmentation"]
            annotation = mask.astype(np.uint8)
            if not use_retina:
                annotation = cv2.resize(
                    annotation,
                    (original_w, original_h),
                    interpolation=cv2.INTER_NEAREST,
                )
            contours, _ = cv2.findContours(annotation, cv2.RETR_TREE, cv2.CHAIN_APPROX_SIMPLE)
            for contour in contours:
                contour_all.append(contour)
        cv2.drawContours(temp, contour_all, -1, (255, 255, 255), 2 // scale)
        color = np.array([0 / 255, 0 / 255, 255 / 255, 0.9])
        contour_mask = temp / 255 * color.reshape(1, 1, -1)

    image = image.convert("RGBA")
    overlay_inner = Image.fromarray((inner_mask * 255).astype(np.uint8), "RGBA")
    image.paste(overlay_inner, (0, 0), overlay_inner)

    if withContours:
        overlay_contour = Image.fromarray((contour_mask * 255).astype(np.uint8), "RGBA")
        image.paste(overlay_contour, (0, 0), overlay_contour)

    return image

# 説明
title = "<center><strong><font size='8'>Efficient Segment Anything with OpenVINO and EfficientSAM <font></strong></center>"

description_p = """# Interactive Instance Segmentation
                - Point-prompt instruction
                <ol>
                <li> Click on the left image (point input), visualizing the point on the right image </li>
                <li> Click the button of Segment with Point Prompt </li>
                </ol>
                - Box-prompt instruction
                <ol>
                <li> Click on the left image (one point input), visualizing the point on the right image </li>
                <li> Click on the left image (another point input), visualizing the point and the box on the right image</li>
                <li> Click the button of Segment with Box Prompt </li>
                </ol>
                """

# 例
examples = [[img] for img in examples_dir.glob("*.jpg")]

default_example = examples[0]

css = "h1 { text-align: center } .about { text-align: justify; padding-left: 10%; padding-right: 10%; }"

def segment_with_boxs(
    image,
    seg_image,
    global_points,
    global_point_label,
    input_size=1024,
    better_quality=False,
    withContours=True,
    use_retina=True,
    mask_random_color=True,
):
    if global_points is None or len(global_points) < 2 or global_points[0] is None:
        return image, global_points, global_point_label

    input_size = int(input_size)
    w, h = image.size
    scale = input_size / max(w, h)
    new_w = int(w * scale)
    new_h = int(h * scale)
    image = image.resize((new_w, new_h))

    scaled_points = np.array([[int(x * scale) for x in point] for point in global_points])
    scaled_points = scaled_points[:2]
    scaled_point_label = np.array(global_point_label)[:2]

    if scaled_points.size == 0 and scaled_point_label.size == 0:
        return image, global_points, global_point_label

    nd_image = np.array(image)
    img_tensor = nd_image.astype(np.float32) / 255
    img_tensor = np.transpose(img_tensor, (2, 0, 1))

    pts_sampled = np.reshape(scaled_points, [1, 1, -1, 2])
    pts_sampled = pts_sampled[:, :, :2, :]
    pts_labels = np.reshape(np.array([2, 3]), [1, 1, 2])

    results = compiled_model([img_tensor[None, ...], pts_sampled, pts_labels])
    predicted_logits = results[0]
    predicted_iou = results[1]
    all_masks = sigmoid(predicted_logits[0, 0, :, :, :])>= 0.5
    predicted_iou = predicted_iou[0, 0, ...]

    max_predicted_iou = -1
    selected_mask_using_predicted_iou = None
    selected_predicted_iou = None

    for m in range(all_masks.shape[0]):
        curr_predicted_iou = predicted_iou[m]
        if curr_predicted_iou > max_predicted_iou or selected_mask_using_predicted_iou is None:
            max_predicted_iou = curr_predicted_iou
            selected_mask_using_predicted_iou = all_masks[m : m + 1]
            selected_predicted_iou = predicted_iou[m : m + 1]

    results = format_results(selected_mask_using_predicted_iou, selected_predicted_iou, predicted_logits, 0)

    annotations = results[0]["segmentation"]
    annotations = np.array([annotations])
    fig = process(
        annotations=annotations,
        image=image,
        scale=(1024 // input_size),
        better_quality=better_quality,
        mask_random_color=mask_random_color,
        use_retina=use_retina,
        bbox=scaled_points.reshape([4]),
        withContours=withContours,
    )

    global_points = []
    global_point_label = []
    return fig, global_points, global_point_label

def segment_with_points(
    image,
    global_points,
    global_point_label,
    input_size=1024,
    better_quality=False,
    withContours=True,
    use_retina=True, mask_random_color=True,
):
    input_size = int(input_size)
    w, h = image.size
    scale = input_size / max(w, h)
    new_w = int(w * scale)
    new_h = int(h * scale)
    image = image.resize((new_w, new_h))

    if global_points is None or len(global_points) < 1 or global_points[0] is None:
        return image, global_points, global_point_label
    scaled_points = np.array([[int(x * scale) for x in point] for point in global_points])
    scaled_point_label = np.array(global_point_label)

    if scaled_points.size == 0 and scaled_point_label.size == 0:
        return image, global_points, global_point_label

    nd_image = np.array(image)
    img_tensor = (nd_image).astype(np.float32) / 255
    img_tensor = np.transpose(img_tensor, (2, 0, 1))

    pts_sampled = np.reshape(scaled_points, [1, 1, -1, 2])
    pts_labels = np.reshape(np.array(global_point_label), [1, 1, -1])

    results = compiled_model([img_tensor[None, ...], pts_sampled, pts_labels])
    predicted_logits = results[0]
    predicted_iou = results[1]
    all_masks = sigmoid(predicted_logits[0, 0, :, :, :])>= 0.5
    predicted_iou = predicted_iou[0, 0, ...]

    results = format_results(all_masks, predicted_iou, predicted_logits, 0)
    annotations, _ = point_prompt(results, scaled_points, scaled_point_label, new_h, new_w)
    annotations = np.array([annotations])

fig = process(
    annotations=annotations,
    image=image,
    scale=(1024 // input_size),
    better_quality=better_quality,
    mask_random_color=mask_random_color,
    points=scaled_points,
    bbox=None,
    use_retina=use_retina,
    withContours=withContours,
)

global_points = []
global_point_label = []
# return fig, None
return fig, global_points, global_point_label

def get_points_with_draw(image, cond_image, global_points, global_point_label, evt: gr.SelectData):
    print(global_points)
    if len(global_points) == 0:
        image = copy.deepcopy(cond_image)
    x, y = evt.index[0], evt.index[1]
    label = "Add Mask"
    point_radius, point_color = 15, (
        (255, 255, 0)
        if label == "Add Mask"
        else (
            255,
            0,
            255,
        )
    )
    global_points.append([x, y])
    global_point_label.append(1 if label == "Add Mask" else 0)

    if image is not None:
        draw = ImageDraw.Draw(image)

        draw.ellipse(
            [
                (x - point_radius, y - point_radius),
                (x + point_radius, y + point_radius),
            ],
            fill=point_color,
        )

    return image, global_points, global_point_label

def get_points_with_draw_(image, cond_image, global_points, global_point_label, evt: gr.SelectData):
    if len(global_points) == 0:
        image = copy.deepcopy(cond_image)
    if len(global_points) > 2:
        return image, global_points, global_point_label
    x, y = evt.index[0], evt.index[1]
    label = "Add Mask"
    point_radius, point_color = 15, (
        (255, 255, 0)
        if label == "Add Mask"
        else (
            255,
            0,
            255,
        )
    )
    global_points.append([x, y])
    global_point_label.append(1 if label == "Add Mask" else 0)

    if image is not None:
        draw = ImageDraw.Draw(image)
        draw.ellipse(
            [
                (x - point_radius, y - point_radius),
                (x + point_radius, y + point_radius),
            ],
            fill=point_color,
        )

    if len(global_points) == 2:
        x1, y1 = global_points[0]
        x2, y2 = global_points[1]
        if x1 < x2 and y1 < y2:
            draw.rectangle([x1, y1, x2, y2], outline="red", width=5)
        elif x1 < x2 and y1 >= y2:
            draw.rectangle([x1, y2, x2, y1], outline="red", width=5)
            global_points[0][0] = x1
            global_points[0][1] = y2
            global_points[1][0] = x2
            global_points[1][1] = y1
        elif x1 >= x2 and y1 < y2:
            draw.rectangle([x2, y1, x1, y2], outline="red", width=5)
            global_points[0][0] = x2
            global_points[0][1] = y1
            global_points[1][0] = x1
            global_points[1][1] = y2
        elif x1 >= x2 and y1 >= y2:
            draw.rectangle([x2, y2, x1, y1], outline="red", width=5)
            global_points[0][0] = x2
            global_points[0][1] = y2
            global_points[1][0] = x1
            global_points[1][1] = y1

    return image, global_points, global_point_label

cond_img_p = gr.Image(label="Input with Point", value=default_example[0], type="pil")
cond_img_b = gr.Image(label="Input with Box", value=default_example[0], type="pil")

segm_img_p = gr.Image(label="Segmented Image with Point-Prompt", interactive=False, type="pil")
segm_img_b = gr.Image(label="Segmented Image with Box-Prompt", interactive=False, type="pil")

with gr.Blocks(css=css, title="Efficient SAM") as demo:
    global_points = gr.State([])
    global_point_label = gr.State([])
    with gr.Row():
        with gr.Column(scale=1):
            # タイトル
            gr.Markdown(title)

    with gr.Tab("Point mode"):
        # 画像
        with gr.Row(variant="panel"):
            with gr.Column(scale=1):
                cond_img_p.render()

            with gr.Column(scale=1):
                segm_img_p.render()

        # 送信とクリア
        # ###
        with gr.Row():
            with gr.Column():
                with gr.Column():
                    segment_btn_p = gr.Button("Segment with Point Prompt", variant="primary")
                    clear_btn_p = gr.Button("Clear", variant="secondary")

                gr.Markdown("Try some of the examples below ⬇️")
                gr.Examples(
                    examples=examples,
                    inputs=[cond_img_p],
                    examples_per_page=4,
                )

            with gr.Column():
                # 説明
                gr.Markdown(description_p)

    with gr.Tab("Box mode"):
        # 画像
        with gr.Row(variant="panel"):
            with gr.Column(scale=1):
                cond_img_b.render()

            with gr.Column(scale=1):
                segm_img_b.render()

        # 送信とクリア
        with gr.Row():
            with gr.Column():
                with gr.Column():
                    segment_btn_b = gr.Button("Segment with Box Prompt", variant="primary")
                    clear_btn_b = gr.Button("Clear", variant="secondary")

                gr.Markdown("Try some of the examples below ⬇️")
                gr.Examples(
                    examples=examples,
                    inputs=[cond_img_b],
                    examples_per_page=4,
                )

        with gr.Column():
            # 説明
            gr.Markdown(description_p)

    cond_img_p.select(
        get_points_with_draw,
        inputs=[segm_img_p, cond_img_p, global_points, global_point_label],
        outputs=[segm_img_p, global_points, global_point_label],
    )

    cond_img_b.select(
        get_points_with_draw_,
        [segm_img_b, cond_img_b, global_points, global_point_label],
        [segm_img_b, global_points, global_point_label],
    )

    segment_btn_p.click(
        segment_with_points,
        inputs=[cond_img_p, global_points, global_point_label],
        outputs=[segm_img_p, global_points, global_point_label],
    )

    segment_btn_b.click(
        segment_with_boxs,
        inputs=[cond_img_b, segm_img_b, global_points, global_point_label],
        outputs=[segm_img_b, global_points, global_point_label],
    )

    clear_btn_p.click(clear, outputs=[cond_img_p, segm_img_p, global_points, global_point_label])
    clear_btn_b.click(clear, outputs=[cond_img_b, segm_img_b, global_points, global_point_label])

demo.queue()
try:
    demo.launch(debug=False)
except Exception:
    demo.launch(share=True, debug=False)
# リモートで起動する場合は、server_name と server_port を指定
# demo.launch(server_name='your server name', server_port='server port in int')
# 詳細はドキュメントをご覧ください: https://gradio.app/docs/
