PhotoMaker と OpenVINO を使用したテキストからの画像生成#

from pathlib import Path

if not Path("PhotoMaker").exists():
     !git clone https://github.com/TencentARC/PhotoMaker.git

%pip install -q --extra-index-url https://download.pytorch.org/whl/cpu\ transformers "torch>=2.1" "diffusers>=0.26" "gradio>=4.19" "openvino>=2024.0.0" torchvision "peft==0.6.2" "nncf>=2.9.0" "protobuf==3.20.3"

adapter_id = "TencentARC/PhotoMaker"
base_model_id = "SG161222/RealVisXL_V3.0"

TEXT_ENCODER_OV_PATH = Path("model/text_encoder.xml")
TEXT_ENCODER_2_OV_PATH = Path("model/text_encoder_2.xml")
UNET_OV_PATH = Path("model/unet.xml")
ID_ENCODER_OV_PATH = Path("model/id_encoder.xml")
VAE_DECODER_OV_PATH = Path("model/vae_decoder.xml")

import torch
import numpy as np
import os
from PIL import Image
from pathlib import Path
from PhotoMaker.photomaker.model import PhotoMakerIDEncoder
from PhotoMaker.photomaker.pipeline import PhotoMakerStableDiffusionXLPipeline
from diffusers import EulerDiscreteScheduler
import gc

trigger_word = "img"

def load_original_pytorch_pipeline_components(photomaker_path: str, base_model_id: str):
    # ベースモデルをロード
    pipe = PhotoMakerStableDiffusionXLPipeline.from_pretrained(base_model_id, use_safetensors=True).to("cpu")

    # PhotoMaker チェックポイントをロード
    pipe.load_photomaker_adapter(
        os.path.dirname(photomaker_path),
        subfolder="",
        weight_name=os.path.basename(photomaker_path),
        trigger_word=trigger_word,
    )
    pipe.scheduler = EulerDiscreteScheduler.from_config(pipe.scheduler.config)
    pipe.fuse_lora()
    gc.collect()
    return pipe

from huggingface_hub import hf_hub_download

photomaker_path = hf_hub_download(repo_id=adapter_id, filename="photomaker-v1.bin", repo_type="model")

pipe = load_original_pytorch_pipeline_components(photomaker_path, base_model_id)

import openvino as ov
import nncf

def flattenize_inputs(inputs):
    """
    Helper function for resolve nested input structure (e.g. lists or tuples of tensors)
    """
    flatten_inputs = []
    for input_data in inputs:
        if input_data is None:
            continue
        if isinstance(input_data, (list, tuple)):
            flatten_inputs.extend(flattenize_inputs(input_data))
        else:
            flatten_inputs.append(input_data)
    return flatten_inputs

dtype_mapping = {
    torch.float32: ov.Type.f32,
    torch.float64: ov.Type.f64,
    torch.int32: ov.Type.i32,
    torch.int64: ov.Type.i64,
    torch.bool: ov.Type.boolean,
}

def prepare_input_info(input_dict):
    """
    Helper function for preparing input info (shapes and data types) for conversion based on example inputs
    """
    flatten_inputs = flattenize_inputs(input_dict.values())
    input_info = []
    for input_data in flatten_inputs:
        updated_shape = list(input_data.shape)
        if input_data.ndim == 5:
            updated_shape[1] = -1
        input_info.append((dtype_mapping[input_data.dtype], updated_shape))
    return input_info

def convert(model: torch.nn.Module, xml_path: str, example_input, input_info):
    """
    Helper function for converting PyTorch model to OpenVINO IR
    """
    xml_path = Path(xml_path)
    if not xml_path.exists():
        xml_path.parent.mkdir(parents=True, exist_ok=True)
        with torch.no_grad():
            ov_model = ov.convert_model(model, example_input=example_input, input=input_info)
        ov_model = nncf.compress_weights(ov_model)
        ov.save_model(ov_model, xml_path)

        del ov_model
        torch._C._jit_clear_class_registry()
        torch.jit._recursive.concrete_type_store = torch.jit._recursive.ConcreteTypeStore()
        torch.jit._state._clear_class_state()

from diffusers.utils import load_image

prompt = "sci-fi, closeup portrait photo of a man img in Iron man suit, face"
negative_prompt = "(asymmetry, worst quality, low quality, illustration, 3d, 2d, painting, cartoons, sketch), open mouth"
generator = torch.Generator("cpu").manual_seed(42)

input_id_images = []
original_image = load_image("./PhotoMaker/examples/newton_man/newton_0.jpg")
input_id_images.append(original_image)

## パラメーター設定
num_steps = 20
style_strength_ratio = 20
start_merge_step = int(float(style_strength_ratio) / 100 * num_steps)
if start_merge_step > 30:
    start_merge_step = 30

images = pipe(
    prompt=prompt,
    input_id_images=input_id_images,
    negative_prompt=negative_prompt,
    num_images_per_prompt=1,
    num_inference_steps=num_steps,
    start_merge_step=start_merge_step,
    generator=generator,
).images

import matplotlib.pyplot as plt

def visualize_results(orig_img: Image.Image, output_img: Image.Image):
    """
    Helper function for pose estimationresults visualization

    Parameters:
        orig_img (Image.Image): original image
        output_img (Image.Image): processed image with PhotoMaker
    Returns:
        fig (matplotlib.pyplot.Figure): matplotlib generated figure
    """
    orig_img = orig_img.resize(output_img.size)
    orig_title = "Original image"
    output_title = "Output image"
    im_w, im_h = orig_img.size
    is_horizontal = im_h < im_w
    fig, axs = plt.subplots(
        2 if is_horizontal else 1,
        1 if is_horizontal else 2,
        sharex="all",
        sharey="all",
    )
    fig.suptitle(f"Prompt: '{prompt}'", fontweight="bold")
    fig.patch.set_facecolor("white")
    list_axes = list(axs.flat)
    for a in list_axes:
        a.set_xticklabels([])
        a.set_yticklabels([])
        a.get_xaxis().set_visible(False)
        a.get_yaxis().set_visible(False)
        a.grid(False)
    list_axes[0].imshow(np.array(orig_img))
    list_axes[1].imshow(np.array(output_img))
    list_axes[0].set_title(orig_title, fontsize=15)
    list_axes[1].set_title(output_title, fontsize=15)
    fig.subplots_adjust(wspace=0.01 if is_horizontal else 0.00, hspace=0.01 if is_horizontal else 0.1)
    fig.tight_layout()
    return fig

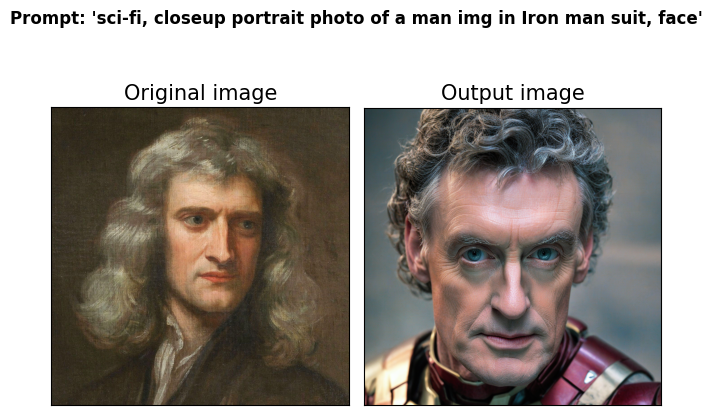

fig = visualize_results(original_image, images[0])

import gradio as gr

def generate_from_text(text_promt, input_image, neg_prompt, seed, num_steps, style_strength_ratio):
    """
    Helper function for generating result image from prompt text

    Parameters:
        text_promt (String): positive prompt
        input_image (Image.Image): original image
        neg_prompt (String): negative prompt
        seed (Int): seed for random generator state initialization
        num_steps (Int): number of sampling steps
        style_strength_ratio (Int): the percentage of step when merging the ID embedding to text embedding

    Returns:
        result (Image.Image): generation result
    """
    start_merge_step = int(float(style_strength_ratio) / 100 * num_steps)
    if start_merge_step > 30:
        start_merge_step = 30
    result = pipe(
        text_promt,
        input_id_images=input_image,
        negative_prompt=neg_prompt,
        num_inference_steps=num_steps,
        num_images_per_prompt=1,

        start_merge_step=start_merge_step,
        generator=torch.Generator().manual_seed(seed),
        height=1024,
        width=1024,
    ).images[0]

    return result

with gr.Blocks() as demo:
    with gr.Column():
        with gr.Row():
            input_image = gr.Image(label="Your image", sources=["upload"], type="pil")
            output_image = gr.Image(label="Generated Images", type="pil")
        positive_input = gr.Textbox(label=f"Text prompt, Trigger words is '{trigger_word}'")
        neg_input = gr.Textbox(label="Negative prompt")
        with gr.Row():
            seed_input = gr.Slider(0, 10_000_000, value=42, label="Seed")
            steps_input = gr.Slider(label="Steps", value=10, minimum=5, maximum=50, step=1)
            style_strength_ratio_input = gr.Slider(label="Style strength ratio", value=20, minimum=5, maximum=100, step=5)
            btn = gr.Button()
        btn.click(
            generate_from_text,
            [
                positive_input,
                input_image,
                neg_input,
                seed_input,
                steps_input,
                style_strength_ratio_input,
            ],
            output_image,
        )
        gr.Examples(
            [
                [prompt, negative_prompt],
                [
                    "A woman img wearing a Christmas hat",
                    negative_prompt,
                ],
                [
                    "A man img in a helmet and vest riding a motorcycle",
                    negative_prompt,
                ],
                [
                    "photo of a middle-aged man img sitting on a plush leather couch, and watching television show",
                    negative_prompt,
                ],
                [
                    "photo of a skilled doctor img in a pristine white lab coat enjoying a delicious meal in a sophisticated dining room",
                    negative_prompt,
                ],
                [
                    "photo of superman img flying through a vibrant sunset sky, with his cape billowing in the wind",
                    negative_prompt,
                ],
            ],
            [positive_input, neg_input],
        )

demo.queue().launch()
# リモートで起動する場合は、server_name と server_port を指定
# demo.launch(server_name='your server name', server_port='server port in int')
# 詳細はドキュメントをご覧ください: https://gradio.app/docs/

demo.close()
