OpenVINO™ による自動デバイス選択#

# LOG_LEVEL を LOG_INFO に設定
core.set_property("AUTO", {"LOG_LEVEL": "LOG_INFO"})

# モデルをターゲットデバイスにロード
compiled_model = core.compile_model(ov_model)

if isinstance(compiled_model, ov.CompiledModel):
    print("Successfully compiled model without a device_name.")

# 削除されたモデルは、選択したデバイスでのコンパイルが完了するまで待機
del compiled_model
print("Deleted compiled_model")

# LOG_LEVEL を LOG_NONE に設定
core.set_property("AUTO", {"LOG_LEVEL": "LOG_NONE"})

compiled_model = core.compile_model(model=ov_model, device_name="AUTO")

if isinstance(compiled_model, ov.CompiledModel):
    print("Successfully compiled model using AUTO.")

# 削除されたモデルは、選択したデバイスでのコンパイルが完了するまで待機
del compiled_model
print("Deleted compiled_model")

# `notebook_utils` モジュールを取得
import requests

r = requests.get(
url="https://raw.githubusercontent.com/openvinotoolkit/openvino_notebooks/latest/utils/notebook_utils.py")
open("notebook_utils.py", "w").write(r.text)

from notebook_utils import download_file

from PIL import Image

# Download the image from the openvino_notebooks storage
image_filename = download_file(
    "https://storage.openvinotoolkit.org/repositories/openvino_notebooks/data/data/image/coco.jpg",
    directory="data",
)

image = Image.open(str(image_filename))
input_transform = torchvision.models.ResNet50_Weights.DEFAULT.transforms()

input_tensor = input_transform(image)
input_tensor = input_tensor.unsqueeze(0).numpy()

if not any("GPU" in device for device in core.available_devices):
    print(f"A GPU device is not available. Available devices are: {core.available_devices}")
else:
    # 開始時間
    gpu_load_start_time = time.perf_counter()
    compiled_model = core.compile_model(model=ov_model, device_name="GPU") # load to GPU

    # 最初の推論を実行
    results = compiled_model(input_tensor)[0]

    # 最初の推論までの時間を測定
    gpu_fil_end_time = time.perf_counter()
    gpu_fil_span = gpu_fil_end_time - gpu_load_start_time
    print(f"Time to load model on GPU device and get first inference: {gpu_fil_end_time-gpu_load_start_time:.2f} seconds.")
    del compiled_model

# 開始時間
auto_load_start_time = time.perf_counter()
compiled_model = core.compile_model(model=ov_model) # device_name はデフォルトでは AUTO

# 最初の推論を実行
results = compiled_model(input_tensor)[0]

# 最初の推論までの時間を測定
auto_fil_end_time = time.perf_counter()
auto_fil_span = auto_fil_end_time - auto_load_start_time
print(f"Time to load model using AUTO device and get first inference: {auto_fil_end_time-auto_load_start_time:.2f} seconds.")

# 削除されたモデルは、選択したデバイスでのコンパイルが完了するまで待機
del compiled_model

class PerformanceMetrics:
    """
    Record the latest performance metrics (fps and latency), update the metrics in each @interval seconds
    :member: fps: Frames per second, indicates the average number of inferences executed each second during the last @interval seconds.
    :member: latency: Average latency of inferences executed in the last @interval seconds.
    :member: start_time: Record the start timestamp of onging @interval seconds duration.
    :member: latency_list: Record the latency of each inference execution over @interval seconds duration.
    :member: interval: The metrics will be updated every @interval seconds
    """

    def __init__(self, interval):
        """
        Create and initilize one instance of class PerformanceMetrics.
        :param: interval: The metrics will be updated every @interval seconds
        :returns:
            Instance of PerformanceMetrics
        """
        self.fps = 0
        self.latency = 0

        self.start_time = time.perf_counter()
        self.latency_list = []
        self.interval = interval

    def update(self, infer_request: ov.InferRequest) -> bool:
        """
        Update the metrics if current ongoing @interval seconds duration is expired. Record the latency only if it is not expired.
        :param: infer_request: InferRequest returned from inference callback, which includes the result of inference request.
        :returns:
            True, if metrics are updated.
            False, if @interval seconds duration is not expired and metrics are not updated.
        """
        self.latency_list.append(infer_request.latency)
        exec_time = time.perf_counter() - self.start_time
        if exec_time >= self.interval:
            # パフォーマンス・メトリックを更新
            self.start_time = time.perf_counter()
            self.fps = len(self.latency_list) / exec_time
            self.latency = sum(self.latency_list) / len(self.latency_list)
            print(f"throughput: {self.fps: .2f}fps, latency: {self.latency: .2f}ms, time interval:{exec_time: .2f}s")
            sys.stdout.flush()
            self.latency_list = []
            return True
        else:
            return False

class InferContext:
    """
    Inference context.Record and update peforamnce metrics via @metrics, set @feed_inference to False once @remaining_update_num <=0
    :member: metrics: instance of class PerformanceMetrics
    :member: remaining_update_num: the remaining times for peforamnce metrics updating.
    :member: feed_inference: if feed inference request is required or not.
    """

    def __init__(self, update_interval, num):
        """
        Create and initilize one instance of class InferContext.
        :param: update_interval: The performance metrics will be updated every @update_interval seconds. This parameter will be passed to class PerformanceMetrics directly.
        :param: num: The number of times performance metrics are updated.
        :returns:
            Instance of InferContext.
        """
        self.metrics = PerformanceMetrics(update_interval)
        self.remaining_update_num = num
        self.feed_inference = True

    def update(self, infer_request: ov.InferRequest):
        """
        Update the context.Set @feed_inference to False if the number of remaining performance metric updates (@remaining_update_num) reaches 0
        :param: infer_request: InferRequest returned from inference callback, which includes the result of inference request.
        :returns: None
        """
        if self.remaining_update_num <= 0:
            self.feed_inference = False

        if self.metrics.update(infer_request):
            self.remaining_update_num = self.remaining_update_num - 1
            if self.remaining_update_num <= 0:
                self.feed_inference = False

def completion_callback(infer_request: ov.InferRequest, context) -> None:
    """
    callback for the inference request, pass the @infer_request to @context for updating
    :param: infer_request: InferRequest returned for the callback, which includes the result of inference request.
    :param: context: user data which is passed as the second parameter to AsyncInferQueue:start_async()
    :returns: None
    """
    context.update(infer_request)

# パフォーマンス・メトリックの更新間隔 (秒) と回数
metrics_update_interval = 10
metrics_update_num = 6

THROUGHPUT_hint_context = InferContext(metrics_update_interval, metrics_update_num)

print("Compiling Model for AUTO device with THROUGHPUT hint")
sys.stdout.flush()

compiled_model = core.compile_model(model=ov_model, config={"PERFORMANCE_HINT": "THROUGHPUT"})

infer_queue = ov.AsyncInferQueue(compiled_model, 0) # 0 に設定すると、デフォルトで最適な数を照会
infer_queue.set_callback(completion_callback)

print(f"Start inference, {metrics_update_num: .0f} groups of FPS/latency will be measured over {metrics_update_interval: .0f}s intervals")
sys.stdout.flush()

while THROUGHPUT_hint_context.feed_inference:
    infer_queue.start_async(input_tensor, THROUGHPUT_hint_context)

infer_queue.wait_all()

# 最新期間の FPS とレイテンシーを取得THROUGHPUT_hint_fps = THROUGHPUT_hint_context.metrics.fps
THROUGHPUT_hint_latency = THROUGHPUT_hint_context.metrics.latency

print("Done")

del compiled_model

LATENCY_hint_context = InferContext(metrics_update_interval, metrics_update_num)

print("Compiling Model for AUTO Device with LATENCY hint")
sys.stdout.flush()

compiled_model = core.compile_model(model=ov_model, config={"PERFORMANCE_HINT": "LATENCY"})

# 0 に設定すると、デフォルトで最適な数を照会
infer_queue = ov.AsyncInferQueue(compiled_model, 0)
infer_queue.set_callback(completion_callback)

print(f"Start inference, {metrics_update_num: .0f} groups fps/latency will be out with {metrics_update_interval: .0f}s interval")
sys.stdout.flush()

while LATENCY_hint_context.feed_inference:
    infer_queue.start_async(input_tensor, LATENCY_hint_context)

infer_queue.wait_all()

# 最新期間の FPS とレイテンシーを取得LATENCY_hint_fps = LATENCY_hint_context.metrics.fps
LATENCY_hint_latency = LATENCY_hint_context.metrics.latency

print("Done")
del compiled_model

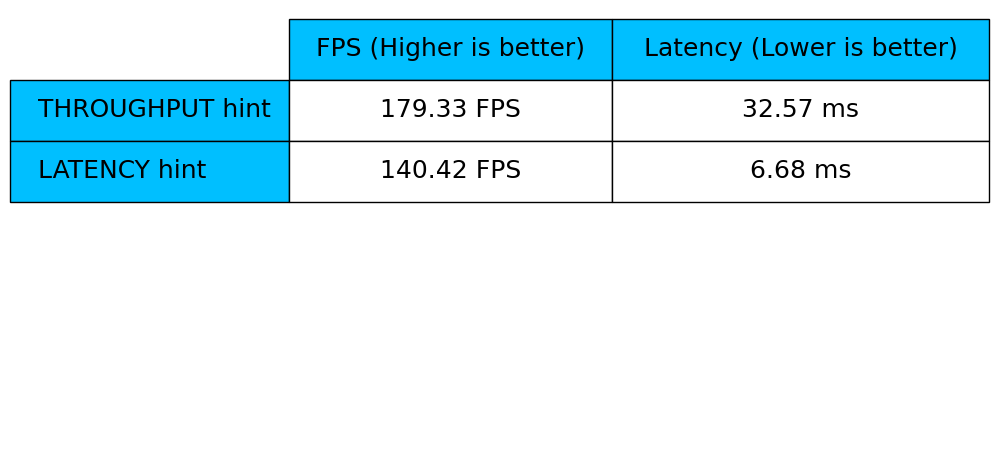

import matplotlib.pyplot as plt

TPUT = 0
LAT = 1
labels = ["THROUGHPUT hint", "LATENCY hint"]

fig1, ax1 = plt.subplots(1, 1)
fig1.patch.set_visible(False)
ax1.axis("tight")
ax1.axis("off")

cell_text = []
cell_text.append(
    [
        "%.2f%s" % (THROUGHPUT_hint_fps, " FPS"),
        "%.2f%s" % (THROUGHPUT_hint_latency, " ms"),
    ]
)
cell_text.append(["%.2f%s" % (LATENCY_hint_fps, " FPS"), "%.2f%s" % (LATENCY_hint_latency, " ms")])

table = ax1.table(
    cellText=cell_text,
    colLabels=["FPS (Higher is better)", "Latency (Lower is better)"],
    rowLabels=labels,
    rowColours=["deepskyblue"] * 2,
    colColours=["deepskyblue"] * 2,
    cellLoc="center",
    loc="upper left",
)
table.auto_set_font_size(False)
table.set_fontsize(18)
table.auto_set_column_width(0)
table.auto_set_column_width(1)
table.scale(1, 3)

fig1.tight_layout()
plt.show()

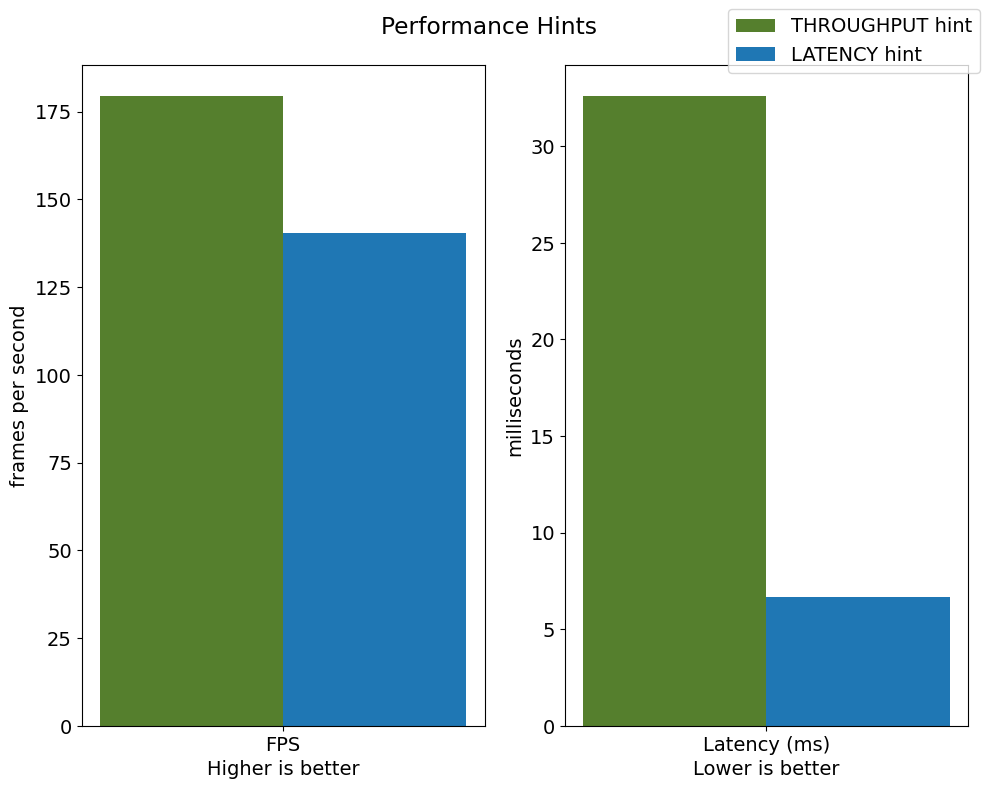

# 差を出力
width = 0.4
fontsize = 14

plt.rc("font", size=fontsize)
fig, ax = plt.subplots(1, 2, figsize=(10, 8))

rects1 = ax[0].bar([0], THROUGHPUT_hint_fps, width, label=labels[TPUT], color="#557f2d")
rects2 = ax[0].bar([width], LATENCY_hint_fps, width, label=labels[LAT])
ax[0].set_ylabel("frames per second")
ax[0].set_xticks([width / 2])
ax[0].set_xticklabels(["FPS"])
ax[0].set_xlabel("Higher is better")

rects1 = ax[1].bar([0], THROUGHPUT_hint_latency, width, label=labels[TPUT], color="#557f2d")
rects2 = ax[1].bar([width], LATENCY_hint_latency, width, label=labels[LAT])
ax[1].set_ylabel("milliseconds")
ax[1].set_xticks([width / 2])
ax[1].set_xticklabels(["Latency (ms)"])
ax[1].set_xlabel("Lower is better")

fig.suptitle("Performance Hints")
fig.legend(labels, fontsize=fontsize)
fig.tight_layout() plt.show()
