OpenVINO™ を使用した 3D 点群パーツのセグメント化#

import platform

%pip install -q "openvino>=2023.1.0" "tqdm"

if platform.system() != "Windows":
     %pip install -q "matplotlib>=3.4"
else:
     %pip install -q "matplotlib>=3.4,<3.7"

from pathlib import Path
from typing import Union
import numpy as np
import matplotlib.pyplot as plt
import openvino as ov

# `notebook_utils` モジュールを取得
import requests

r = requests.get(

url="https://raw.githubusercontent.com/openvinotoolkit/openvino_notebooks/latest/utils/notebook_utils.py",
)
open("notebook_utils.py", "w").write(r.text)

from notebook_utils import download_file

# データとモデルのディレクトリー、モデルソースの URL、モデルファイル名を設定
MODEL_DIR = Path("model")
MODEL_DIR.mkdir(exist_ok=True)
download_file(
    "https://storage.googleapis.com/ailia-models/pointnet_pytorch/chair_100.onnx",
    directory=Path(MODEL_DIR),
    show_progress=False,
)
onnx_model_path = MODEL_DIR / "chair_100.onnx"

ir_model_xml = onnx_model_path.with_suffix(".xml")

core = ov.Core()

if not ir_model_xml.exists():
    # モデルを OpenVINO モデルに変換
    model = ov.convert_model(onnx_model_path)
    # モデルを OpenVINO IR 形式 xml + bin でシリアル化
    ov.save_model(model, ir_model_xml)
else:
    # モデルをリード
    model = core.read_model(model=ir_model_xml)

def load_data(point_file: Union[str, Path]):
    """
    Load the point cloud data and convert it to ndarray

    Parameters:
        point_file: string, path of .pts data
    Returns:
        point_set: point clound represented in np.array format
    """

    point_set = np.loadtxt(point_file).astype(np.float32)

    # 正規化
    point_set = point_set - np.expand_dims(np.mean(point_set, axis=0), 0) # center
    dist = np.max(np.sqrt(np.sum(point_set**2, axis=1)), 0)
    point_set = point_set / dist # scale

    return point_set

def visualize(point_set: np.ndarray):
    """
    Create a 3D view for data visualization

    Parameters:
        point_set: np.ndarray, the coordinate data in X Y Z format
    """

    fig = plt.figure(dpi=192, figsize=(4, 4))
    ax = fig.add_subplot(111, projection="3d")
    X = point_set[:, 0]
    Y = point_set[:, 2]
    Z = point_set[:, 1]

    # 各軸のビューをスケーリングして、座標データ分布に適応
    max_range = np.array([X.max() - X.min(), Y.max() - Y.min(), Z.max() - Z.min()]).max() * 0.5
    mid_x = (X.max() + X.min()) * 0.5
    mid_y = (Y.max() + Y.min()) * 0.5
    mid_z = (Z.max() + Z.min()) * 0.5
    ax.set_xlim(mid_x - max_range, mid_x + max_range)
    ax.set_ylim(mid_y - max_range, mid_y + max_range)
    ax.set_zlim(mid_z - max_range, mid_z + max_range)

    plt.tick_params(labelsize=5)
    ax.set_xlabel("X", fontsize=10)
    ax.set_ylabel("Y", fontsize=10)
    ax.set_zlabel("Z", fontsize=10)

    return ax

# Download data from the openvino_notebooks storage
point_data = download_file(

"https://storage.openvinotoolkit.org/repositories/openvino_notebooks/data/data/pts/chair.pts",
    directory="data",
)

points = load_data(str(point_data))
X = points[:, 0]
Y = points[:, 2]
Z = points[:, 1]
ax = visualize(points)
ax.scatter3D(X, Y, Z, s=5, cmap="jet", marker="o", label="chair")

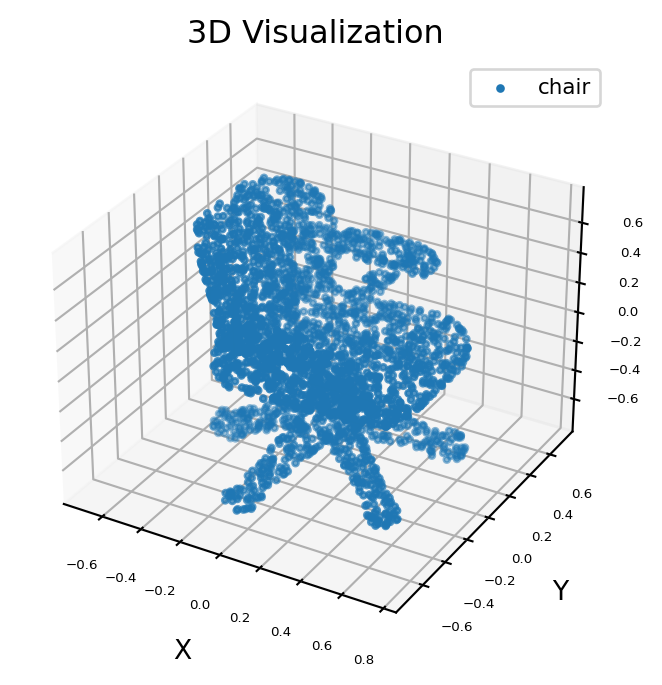

ax.set_title("3D Visualization")
plt.legend(loc="upper right", fontsize=8)
plt.show()

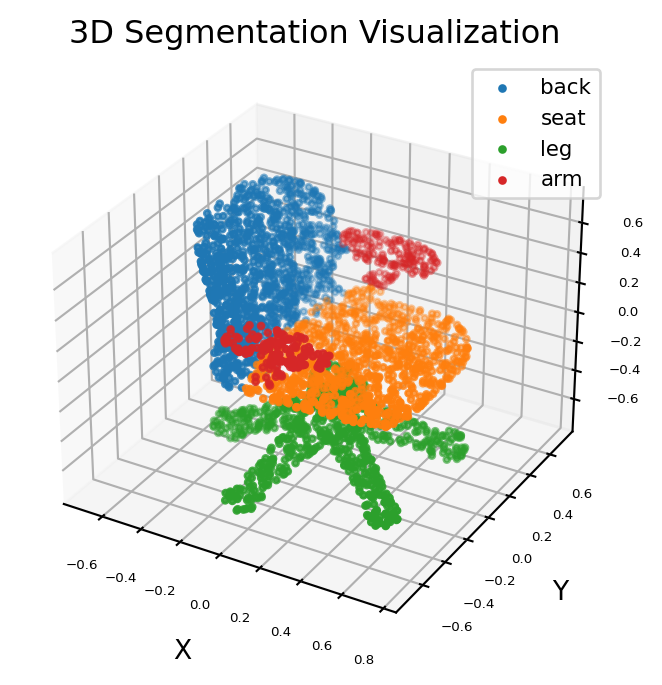

# 椅子の部品
classes = ["back", "seat", "leg", "arm"]

# 入力データを前処理
point = points.transpose(1, 0)
point = np.expand_dims(point, axis=0)

# モデルの入力と出力の形状に関する情報をプリント
print(f"input shape: {model.input(0).partial_shape}")
print(f"output shape: {model.output(0).partial_shape}")
