OpenVINO™ による人物追跡#

import platform

%pip install -q "openvino-dev>=2024.0.0"
%pip install -q opencv-python requests scipy tqdm

if platform.system() != "Windows":
     %pip install -q "matplotlib>=3.4"
else:
     %pip install -q "matplotlib>=3.4,<3.7"

import collections
from pathlib import Path
import time

import numpy as np
import cv2
from IPython import display
import matplotlib.pyplot as plt
import openvino as ov

# ローカルモジュールをインポート

if not Path("./notebook_utils.py").exists():
    # `notebook_utils` モジュールを取得
    import requests

    r = requests.get(

url="https://raw.githubusercontent.com/openvinotoolkit/openvino_notebooks/latest/utils/notebook_utils.py",
    )

    open("notebook_utils.py", "w").write(r.text)

import notebook_utils as utils
from deepsort_utils.tracker import Tracker
from deepsort_utils.nn_matching import NearestNeighborDistanceMetric
from deepsort_utils.detection import (
    Detection,
    compute_color_for_labels,
    xywh_to_xyxy,
    xywh_to_tlwh,
    tlwh_to_xyxy,
)

# モデルがダウンロードされるディレクトリー
base_model_dir = "model"
precision = "FP16"
# The name of the model from Open Model Zoo
detection_model_name = "person-detection-0202"

download_command = (
    f"omz_downloader " f"--name {detection_model_name} " f"--precisions {precision} " f"--output_dir {base_model_dir} " f"--cache_dir {base_model_dir}"
)
!  $download_command

detection_model_path =
f"model/intel/{detection_model_name}/{precision}/{detection_model_name}.xml"

reidentification_model_name = "person-reidentification-retail-0287"

download_command = (
    f"omz_downloader " f"--name {reidentification_model_name} " f"--precisions {precision} " f"--output_dir {base_model_dir} " f"--cache_dir {base_model_dir}"
)
!  $download_command

reidentification_model_path =
f"model/intel/{reidentification_model_name}/{precision}/{reidentification_model_name}.xml"

core = ov.Core()

class Model:
    """
    This class represents a OpenVINO model object.
    """

    def __init__(self, model_path, batchsize=1, device="AUTO"):
        """
        Initialize the model object

        Parameters
        ----------
        model_path: path of inference model
        batchsize: batch size of input data
        device: device used to run inference
        """
        self.model = core.read_model(model=model_path)
        self.input_layer = self.model.input(0)
        self.input_shape = self.input_layer.shape
        self.height = self.input_shape[2]
        self.width = self.input_shape[3]

        for layer in self.model.inputs:
            input_shape = layer.partial_shape
            input_shape[0] = batchsize
            self.model.reshape({layer: input_shape})
        self.compiled_model = core.compile_model(model=self.model, device_name=device)
        self.output_layer = self.compiled_model.output(0)

def predict(self, input):
    """
    Run inference

    Parameters
    ----------
    input: array of input data
    """
    result = self.compiled_model(input)[self.output_layer]
    return result

def preprocess(frame, height, width):
    """
    Preprocess a single image

    Parameters
    ----------
    frame: input frame
    height: height of model input data
    width: width of model input data
    """
    resized_image = cv2.resize(frame, (width, height))
    resized_image = resized_image.transpose((2, 0, 1))
    input_image = np.expand_dims(resized_image, axis=0).astype(np.float32)
    return input_image

def batch_preprocess(img_crops, height, width):
    """
    Preprocess batched images

    Parameters
    ----------
    img_crops: batched input images
    height: height of model input data
    width: width of model input data
    """
    img_batch = np.concatenate([preprocess(img, height, width) for img in img_crops], axis=0)
    return img_batch

def process_results(h, w, results, thresh=0.5):
    """
    postprocess detection results

    Parameters
    ----------
    h, w: original height and width of input image
    results: raw detection network output
    thresh: threshold for low confidence filtering
    """
    # 'results' 変数は [1, 1, N, 7] テンソルです
    detections = results.reshape(-1, 7)
    boxes = []
    labels = []
    scores = []
    for i, detection in enumerate(detections):
        _, label, score, xmin, ymin, xmax, ymax = detection
        # 検出されたオブジェクトをフィルター処理
        if score > thresh:
            # 正規化された座標 [0,1] のボックスからピクセル座標のボックスを作成
            boxes.append(
                [
                    (xmin + xmax) / 2 * w,
                    (ymin + ymax) / 2 * h,
                    (xmax - xmin) * w,
                    (ymax - ymin) * h,
                ]
            )
            labels.append(int(label))
            scores.append(float(score))

    if len(boxes) == 0:
        boxes = np.array([]).reshape(0, 4)
        scores = np.array([])
        labels = np.array([])
    return np.array(boxes), np.array(scores), np.array(labels)

def draw_boxes(img, bbox, identities=None):
    """
    Draw bounding box in original image

    Parameters
    ----------
    img: original image
    bbox: coordinate of bounding box
    identities: identities IDs
    """
    for i, box in enumerate(bbox):
        x1, y1, x2, y2 = [int(i) for i in box]
        # ボックステキストとバー
        id = int(identities[i]) if identities is not None else 0
        color = compute_color_for_labels(id)
        label = "{}{:d}".format("", id)
        t_size = cv2.getTextSize(label, cv2.FONT_HERSHEY_PLAIN, 2, 2)[0]
        cv2.rectangle(img, (x1, y1), (x2, y2), color, 2)
        cv2.rectangle(img, (x1, y1), (x1 + t_size[0] + 3, y1 + t_size[1] + 4), color, -1)
        cv2.putText(
            img,
            label,
            (x1, y1 + t_size[1] + 4),
            cv2.FONT_HERSHEY_PLAIN,
            1.6,
            [255, 255, 255],
            2,
        )
    return img

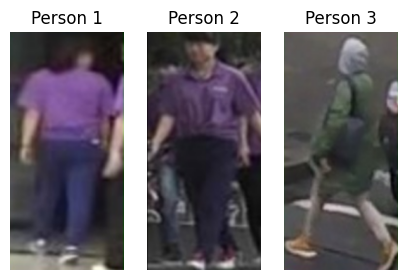

def cosin_metric(x1, x2):
    """
    Calculate the consin distance of two vector

    Parameters
    ----------
    x1, x2: input vectors
    """
    return np.dot(x1, x2) / (np.linalg.norm(x1) * np.linalg.norm(x2))

# 人物追跡を実行するメイン処理関数
def run_person_tracking(source=0, flip=False, use_popup=False, skip_first_frames=0):
    """
    Main function to run the person tracking:
    1. Create a video player to play with target fps (utils.VideoPlayer).
    2. Prepare a set of frames for person tracking.
    3. Run AI inference for person tracking.
    4. Visualize the results.
    Parameters:
    ----------
        source: The webcam number to feed the video stream with primary webcam set to "0", or the video path.
        flip: To be used by VideoPlayer function for flipping capture image.
        use_popup: False for showing encoded frames over this notebook, True for creating a popup window.
        skip_first_frames: Number of frames to skip at the beginning of the video.
    """
    player = None
    try:
        # ターゲット fps で再生するビデオプレーヤーを作成
        player = utils.VideoPlayer(
            source=source,
            size=(700, 450),
            flip=flip,
            fps=24,
            skip_first_frames=skip_first_frames,
        )
        # キャプチャーを開始
        player.start()
        if use_popup:
            title = "Press ESC to Exit"
            cv2.namedWindow(winname=title, flags=cv2.WINDOW_GUI_NORMAL | cv2.WINDOW_AUTOSIZE)

        processing_times = collections.deque()
        while True:            # フレームをグラブ
            frame = player.next()
            if frame is None:
                print("Source ended")
                break
            # フレームがフル HD より大きい場合は、サイズを縮小してパフォーマンスを向上させます
            # ニューラル・ネットワークの入力に合わせて画像のサイズを変更し、暗さを変更
            h, w = frame.shape[:2]
            input_image = preprocess(frame, detector.height, detector.width)

            # 処理時間を測定
            start_time = time.time()
            # Get the results.
            output = detector.predict(input_image)
            stop_time = time.time()
            processing_times.append(stop_time - start_time)
            if len(processing_times) > 200:
                processing_times.popleft()

            _, f_width = frame.shape[:2]
            # 平均処理時間 [ms]
            processing_time = np.mean(processing_times) * 1100
            fps = 1000 / processing_time

            # 検出結果からポーズを取得
            bbox_xywh, score, label = process_results(h, w, results=output)

            img_crops = []
            for box in bbox_xywh:
                x1, y1, x2, y2 = xywh_to_xyxy(box, h, w)
                img = frame[y1:y2, x1:x2]
                img_crops.append(img)

            # 各人の再識別機能を取得
            if img_crops:
                # 前処理
                img_batch = batch_preprocess(img_crops, extractor.height, extractor.width)
                features = extractor.predict(img_batch)
            else:
                features = np.array([])

            # 検出結果と再識別結果をまとめる
            bbox_tlwh = xywh_to_tlwh(bbox_xywh)
            detections = [Detection(bbox_tlwh[i], features[i]) for i in range(features.shape[0])]

            # 追跡対象の位置を予測
            tracker.predict()

            # トラッカーを更新
            tracker.update(detections)

            # bbox ID を更新
            outputs = []
            for track in tracker.tracks:
                if not track.is_confirmed() or track.time_since_update > 1:
                    continue
                box = track.to_tlwh()
                x1, y1, x2, y2 = tlwh_to_xyxy(box, h, w)
                track_id = track.track_id
                outputs.append(np.array([x1, y1, x2, y2, track_id], dtype=np.int32))
            if len(outputs) > 0:
                outputs = np.stack(outputs, axis=0)

            # 視覚化のための描画ボックス
            if len(outputs) > 0:
                bbox_tlwh = []
                bbox_xyxy = outputs[:, :4]
                identities = outputs[:, -1]
                frame = draw_boxes(frame, bbox_xyxy, identities)

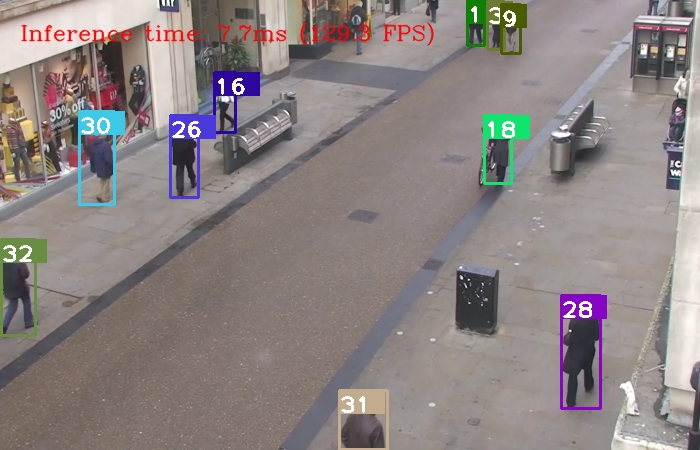

            cv2.putText(
                img=frame,
                text=f"Inference time: {processing_time:.1f}ms ({fps:.1f} FPS)",
                org=(20, 40),
                fontFace=cv2.FONT_HERSHEY_COMPLEX,
                fontScale=f_width / 1000,
                color=(0, 0, 255),
                thickness=1,
                lineType=cv2.LINE_AA,
            )

            if use_popup:
                cv2.imshow(winname=title, mat=frame)
                key = cv2.waitKey(1)
                # escape = 27
                if key == 27:
                    break
            else:
                # numpy 配列を jpg にエンコード
                _, encoded_img = cv2.imencode(ext=".jpg", img=frame, params=[cv2.IMWRITE_JPEG_QUALITY, 100])
                # IPython イメージを作成
                i = display.Image(data=encoded_img)
                # このノートブックに画像を表示
                display.clear_output(wait=True)
                display.display(i)

# ctrl-c
except KeyboardInterrupt:
    print("Interrupted")
# 異なるエラー
except RuntimeError as e:
    print(e)
finally:
    if player is not None:
        # キャプチャーを停止
        Player.stop().stop()
    if use_popup:
        cv2.destroyAllWindows()
