前処理の最適化#

# openvino_notebooks ストレージからイメージをダウンロード
image_path = download_file(
    "https://storage.openvinotoolkit.org/repositories/openvino_notebooks/data/data/image/coco.jpg",
    directory="data",
)
image_path = str(image_path)

import ipywidgets as widgets

core = ov.Core()
device = widgets.Dropdown(
    options=core.available_devices + ["AUTO"],
    value="AUTO",
    description="Device:",
    disabled=False,
)

device

model_name = "InceptionResNetV2"

model_dir = Path("model")
model_dir.mkdir(exist_ok=True)

model_path = model_dir / model_name

model = tf.keras.applications.InceptionV3()
model.save(model_path)

core = ov.Core()

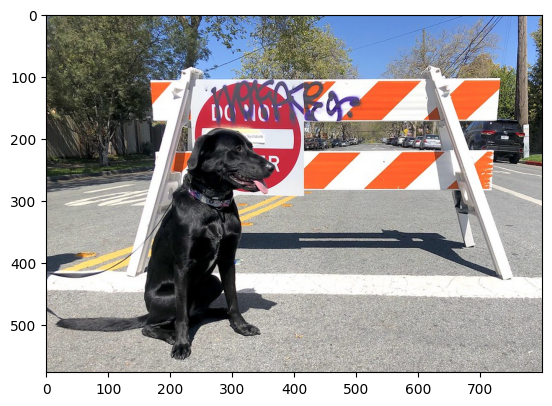

image = cv2.imread(image_path)
plt.imshow(cv2.cvtColor(image, cv2.COLOR_BGR2RGB))
print(f"The original shape of the image is {image.shape}")
print(f"The original data type of the image is {image.dtype}")

ir_path = model_dir / "ir_model" / f"{model_name}.xml"

ppp_model = None

if ir_path.exists():
    ppp_model = core.read_model(model=ir_path)
    print(f"Model in OpenVINO format already exists: {ir_path}")
else:
    ppp_model = ov.convert_model(model_path, input=[1, 299, 299, 3])
    ov.save_model(ppp_model, str(ir_path))

from openvino.preprocess import PrePostProcessor

ppp = PrePostProcessor(ppp_model)

# データの形式を設定
ppp.input().tensor().set_element_type(ov.Type.u8).set_spatial_dynamic_shape().set_layout(ov.Layout("NHWC"))

input_layer_ir = next(iter(ppp_model.inputs))
print(f"The input shape of the model is {input_layer_ir.shape}")

ppp.input().model().set_layout(ov.Layout("NHWC"))

from openvino.preprocess import ResizeAlgorithm

ppp.input().preprocess().convert_element_type(ov.Type.f32).resize(ResizeAlgorithm.RESIZE_LINEAR).mean([127.5, 127.5, 127.5]).scale([127.5, 127.5, 127.5])

print(f"Dump preprocessor: {ppp}")
model_with_preprocess = ppp.build()

model = core.read_model(model=ir_path)
compiled_model = core.compile_model(model=model, device_name=device.value)

def manual_image_preprocessing(path_to_image, compiled_model):
    input_layer_ir = next(iter(compiled_model.inputs))

    # N, H, W, C = バッチサイズ、高さ、幅、チャネル数
    N, H, W, C = input_layer_ir.shape

    # 画像を読み込むと、画像はモデル入力サイズに合わせてサイズ変更され RGB に変換
    img = tf.keras.preprocessing.image.load_img(image_path, target_size=(H, W), color_mode="rgb")

    x = tf.keras.preprocessing.image.img_to_array(img)
    x = np.expand_dims(x, axis=0)

    # 入力ピクセルを -1 から 1 の間でスケール
    input_tensor = tf.keras.applications.inception_resnet_v2.preprocess_input(x)
    return input_tensor

input_tensor = manual_image_preprocessing(image_path, compiled_model)
print(f"The shape of the image is {input_tensor.shape}")
print(f"The data type of the image is {input_tensor.dtype}")

output_layer = compiled_model.output(0)

result = compiled_model(input_tensor)[output_layer]

def check_results(input_tensor, compiled_model, imagenet_classes):
    output_layer = compiled_model.output(0)

    results = compiled_model(input_tensor)[output_layer][0]

    top_indices = np.argsort(results)[-5:][::-1]
    top_softmax = results[top_indices]

    for index, softmax_probability in zip(top_indices, top_softmax):
        print(f"{imagenet_classes[index]}, {softmax_probability:.5f}")

    return top_indices, top_softmax

# 推論結果をクラス名に変換
imagenet_filename = download_file(

"https://storage.openvinotoolkit.org/repositories/openvino_notebooks/data/data/datasets/imagenet/imagenet_2012.txt",
    directory="data",
)
imagenet_classes = imagenet_filename.read_text().splitlines()
imagenet_classes = ["background"] + imagenet_classes

# 前処理 API を使用して推論の結果を取得
print("Result of inference with Preprocessing API:")
res = check_results(ppp_input_tensor, compiled_model_with_preprocess_api, imagenet_classes)

print("\n")

# 手動で画像を準備して推論の結果を得る
print("Result of inference with manual image setup:")
res = check_results(input_tensor, compiled_model, imagenet_classes)

def check_performance(compiled_model, preprocessing_function=None):
    num_images = 1000

    start = time.perf_counter()

    for _ in range(num_images):
        input_tensor = preprocessing_function(image_path, compiled_model)
        compiled_model(input_tensor)

    end = time.perf_counter()
    time_ir = end - start

    return time_ir, num_images

time_ir, num_images = check_performance(compiled_model, manual_image_preprocessing)
print(f"IR model in OpenVINO Runtime/CPU with manual image preprocessing: {time_ir/num_images:.4f} " f"seconds per image, FPS: {num_images/time_ir:.2f}")

time_ir, num_images = check_performance(compiled_model_with_preprocess_api, prepare_image_api_preprocess)
print(f"IR model in OpenVINO Runtime/CPU with preprocessing API: {time_ir/num_images:.4f} " f"seconds per image, FPS: {num_images/time_ir:.2f}")
